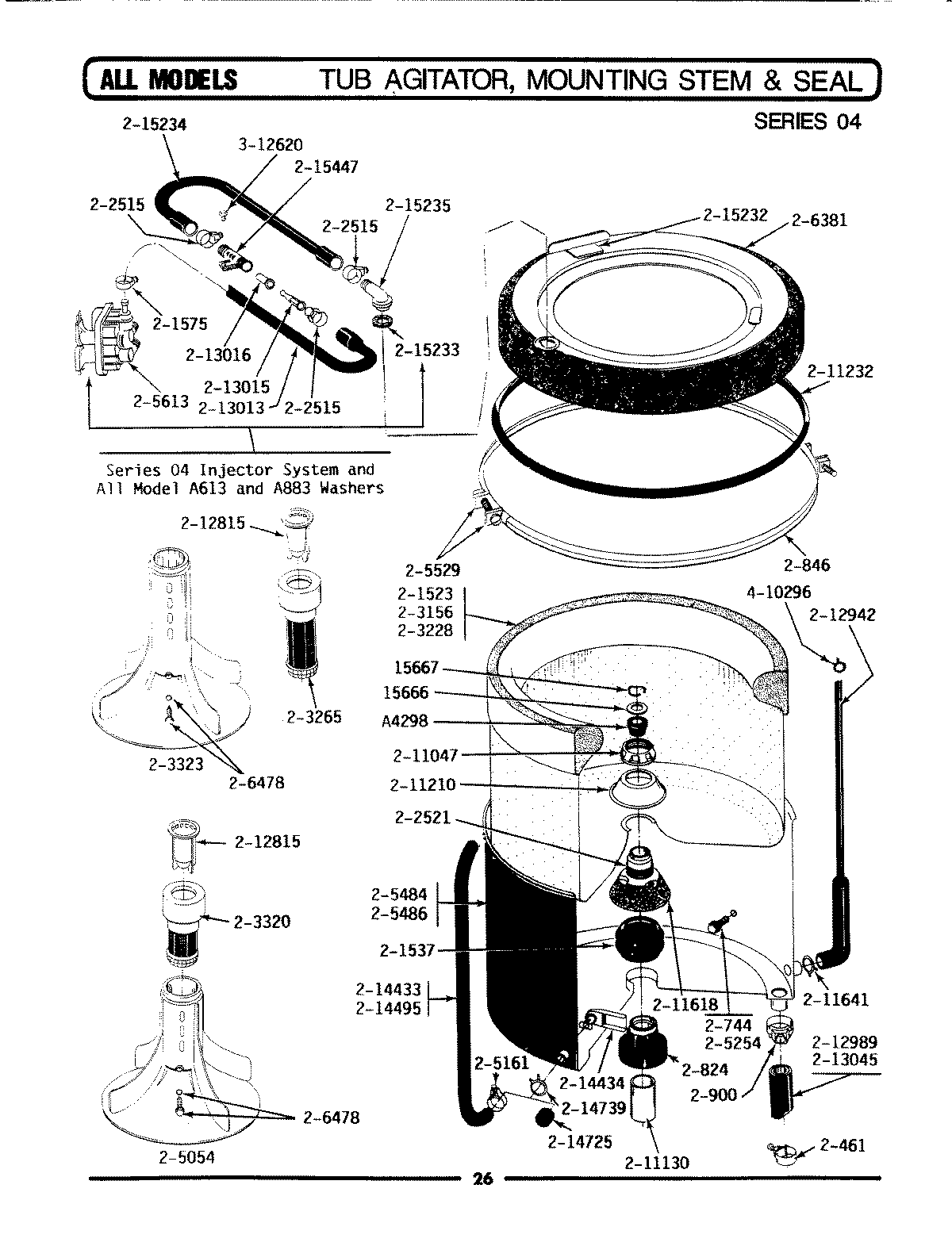

A612S 10 – TUB, AGITATOR, MTG. STEM & SEAL (SER 04)

Products

Position	Product
NI	MAY 214875
NI	MAY 203156
NI	MAY 211100
NI	MAY 206683
NI	MAY 204012
NI	MAY Y310632
NI	MAY Y054867
1	MAY A04298
2	WPY015666 Whirlpool Washer Retainer
3	MAY Y015667
5	W10175939 Whirlpool Bolt Assembly
6	6-2040130 Whirlpool Washer Tub Bearing Kit
8	MAY 200900
10	MAY 201537
11	WP596669 Whirlpool Hose Clamp
14	MAY 202521
16	MAY 203265
18	MAY 203323
22	WP489503 Whirlpool Refrigerator Clamp
23	W10175938 Whirlpool Bolt
24	PART NOT USED
27	205613 Whirlpool Washer Water Inlet Valve
28	MAY 206381
29	MAY 206478
31	WP6-2110472 Whirlpool Nut Clamp
33	MAY 211130
34	MAY 211210
35	WP211232 Whirlpool Seal
36	MAY 211618
37	WP285655 Whirlpool Hose Clamp
38	MAY 212815
39	MAY 212942
41	WP213013 Whirlpool Injector Hose
42	WP213015 Whirlpool Nozzle Injector Tube
43	WP216201 Whirlpool Rubber Injector Valve
44	WP213045 Whirlpool Dishwasher Tub to Pump Hose
45	WP214433 Whirlpool Inlet Tube
45	MAY 214434
46	MAY 214725
49	MAY 215232
50	WP215233 Whirlpool Seal
51	WPY215234 Whirlpool Hose
52	MAY 215235
53	WP215447 Whirlpool Sleeve
55	MAY 312620
