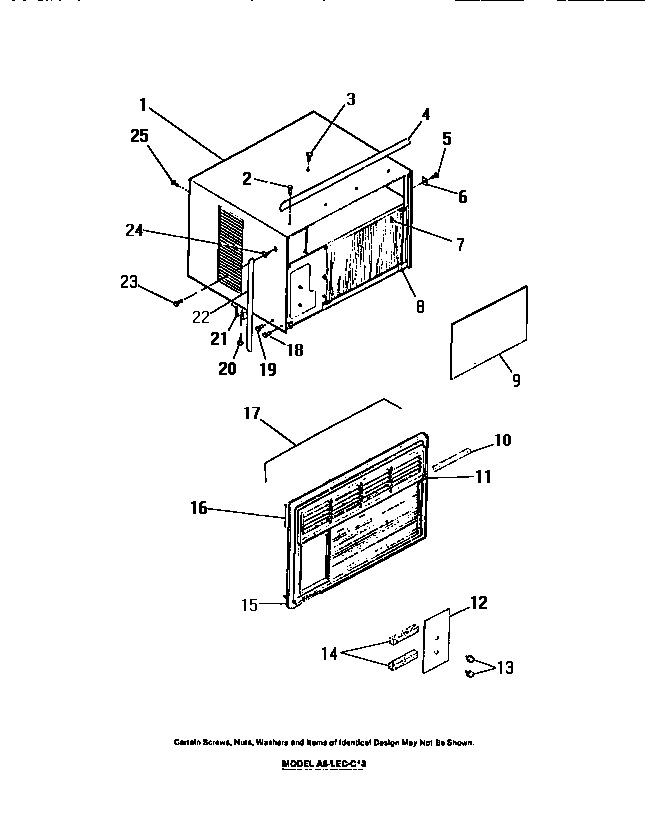

A6LECC3 02 – CABINET, FRONT
Written by
in
A6LECC3 02 – CABINET, FRONT
Products
| Position | Product |
|---|---|
| 1 | SHELL |
| 2 | SCREW |
| 4 | WCI 8007493 |
| 7 | CLIP-CAP. TUBE |
| 8 | CLIP (2) |
| 9 | WCI 8009018 |
| 10 | SEAL |
| 11 | WCI 8013632 |
| 12 | WCI 8006837 |
| 13 | KNOB-CONTROL (3) |
| 14 | SEAL |
| 15 | WCI 8013619 |
| 16 | WCI 8007461 |
| 17 | WCI 8013626 |
| 19 | SCREW (4) |
| 20 | SCREW (2) |
| 21 | SUPPORT |
| 22 | RETAINER (2) |
| 23 | SCREW-FRONT LOCKING |
| 24 | NUT |
| 25 | SCREW |
