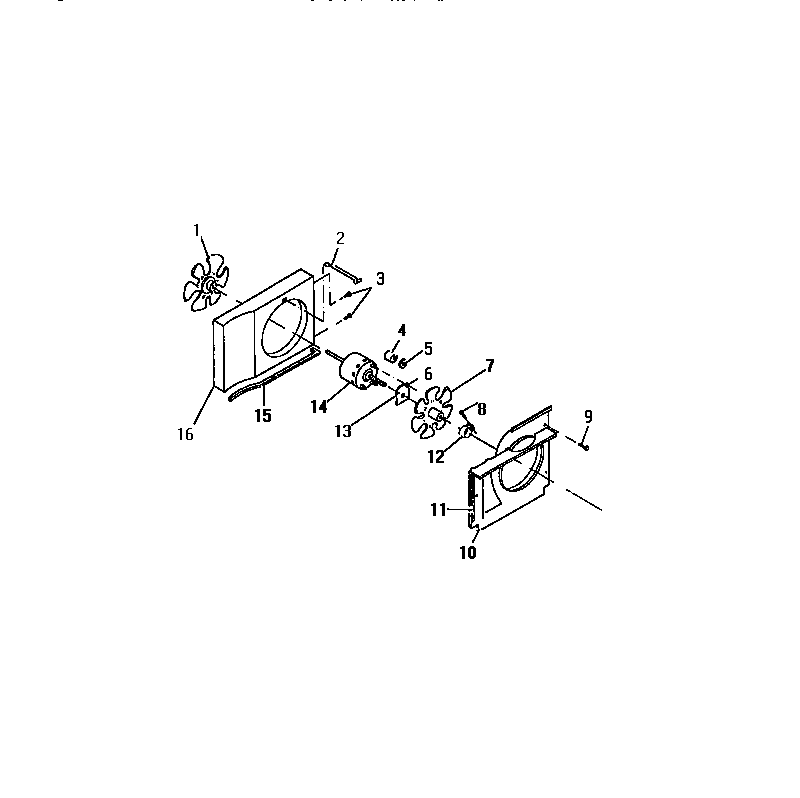

A6LECD2 10 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Products

Position	Product
*23127	SPACER, PLATE, SPLASH (2)
*23129	SCREW, FAN MOTOR MOUNTING (3)
*23128	WCI 8012678
1	FAN, CONDENSER (INCL. CLAMP)
2	CLIP
3	SCREW, GROUND TO CONTROL PANEL
4A	GROMMET (3)
4	WCI 8006943
6	NUT (3)
7	FAN, EVAPORATOR (INCL. CLAMP)
8	SCREW
9	SCREW (4)
10	SHROUD, EVAPORATOR
11	SEAL
12	CLAMP
13	WCI 8007483
14	WCI 8010875
15	SEAL
16	SHROUD, CONDENSER
