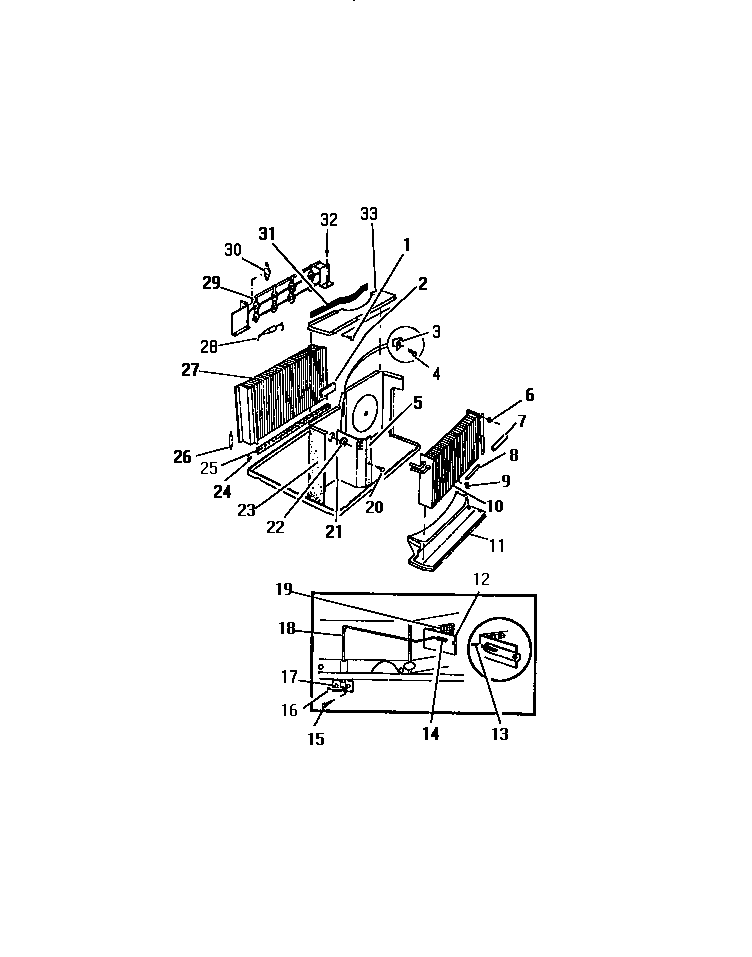

A6LECD2 11 – EVAPORATOR, CONDENSER (`AAA` CABINE

Products

Position	Product
2	WCI 8006453
3	WCI 8009025
5	INSULATION
6	SPACER (2)
7	INSULATOR-CAP TUBE
8	INSULATOR-TUBE
10	WCI 8013618
11	WCI 8006917
12	WCI 8016234
14	WCI 8007511
16	WCI 8007500
17	WCI 8007514
18	WCI 8007499
19	WCI 8007477
20	SCREW (4)
21	DIVIDER, VERTICAL
22	GROMMET
23	WCI 8010970
24	CLIP-CONDENSER
25	SEAL
26	DRIER
27	WCI 8013810
31	SEAL
32	SCREW, GROUND TO CONTROL PANEL
33	WCI 8013078
