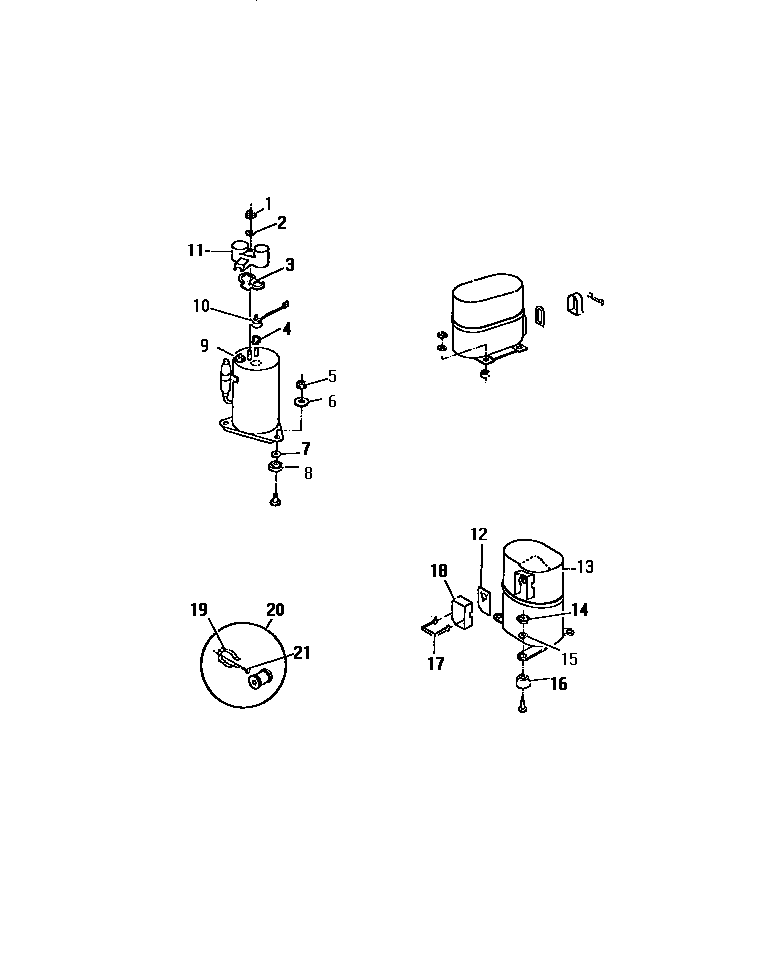

A6LECDC2 25 – COMPRESSOR (`B` CABINET MODELS)
Products
| Position | Product |
|---|---|
| 1 | NUT |
| 2 | GASKET-NUT |
| 3 | GASKET-TER. CVR. |
| 4 | SPRING-OVERLOAD |
| 7 | WASHER-MTR |
| 8 | GROMMET |
| 9 | WCI 8013015 |
| 10 | WCI 8012981 |
| 11 | COVER-TERM. |
| 12 | GASKET-COVER |
| 13 | WCI 8013014 |
| 14 | NUT |
| 15 | WASHER |
| 16 | GROMMET |
| 17 | WCI 8010948 |
| 18 | COVER-TERMINAL |
| 19 | CLAMP |
| 20 | RELAY, START KIT |
| 21 | SCREW |
