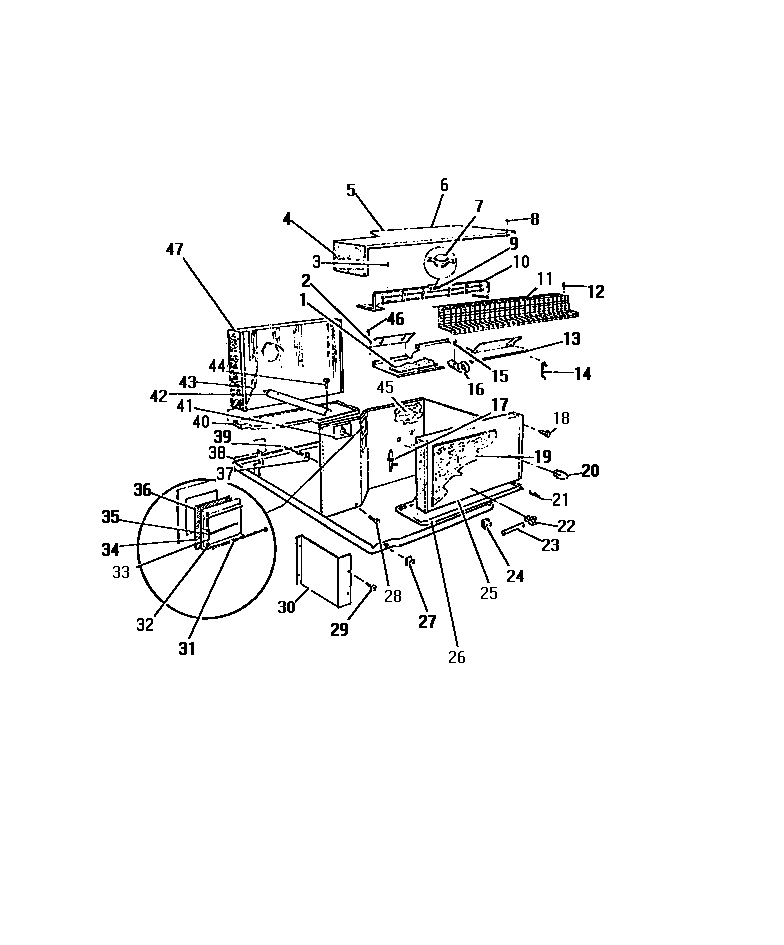

A6LECDC3 16 – EVAPORATOR, CONDENSER (`DD` CABINET

Written by

Products

Position	Product
1	WCI 8009349
2	WCI 8007191
4	WCI 8007652
5	WCI 8007189
6	WCI 8007650
7	WCI 8013170
9	WCI 8013169
10	WCI 8014330
11	WCI 8007837
12	SCREW-SCROLL
13	WCI 8013172
13	WCI 8013171
14	WCI 8007668
15	WCI 8007193
16	WCI 8006914
17	WCI 8014100
18	WCI 8009138
19	WCI 8007210
21	HOSE-EVAP DRAIN
22	CLIP-CAP. TUBE
23	INSULATOR-TUBE
23	4“ INSULATOR
24	CLIP-FRONT TO BASE
25	WCI 8014110
25	WCI 8013716
25	WCI 8014109
25	WCI 8013720
25	WCI 8013722
25	WCI 8013721
26	TRAY-EVAP
27	CLIP-FRT TO BASE LH
29	SCREW, PLATE, CABLE TO BULKHEAD
30	WCI 8007644
31	CABLE, VENT DOOR, 12.22 LENGTH
32	WCI 8006784
33	ROD-HINGE
34	WCI 8007636
35	WCI 8007192
36	WCI 8007141
37	WCI 8009025
38	WCI 8007637
39	SPRING-OVERLOAD
40	TRAY-COND.
41	WCI 8007606
42	WCI 8007199
43	DRIER
44	WCI 8009156
45	WCI 8009350
46	WCI 8002951
47	WCI 8013713
47	WCI 8014117
47	WCI 8014105
47	WCI 8013715
47	WCI 8013714
47	WCI 8014107
