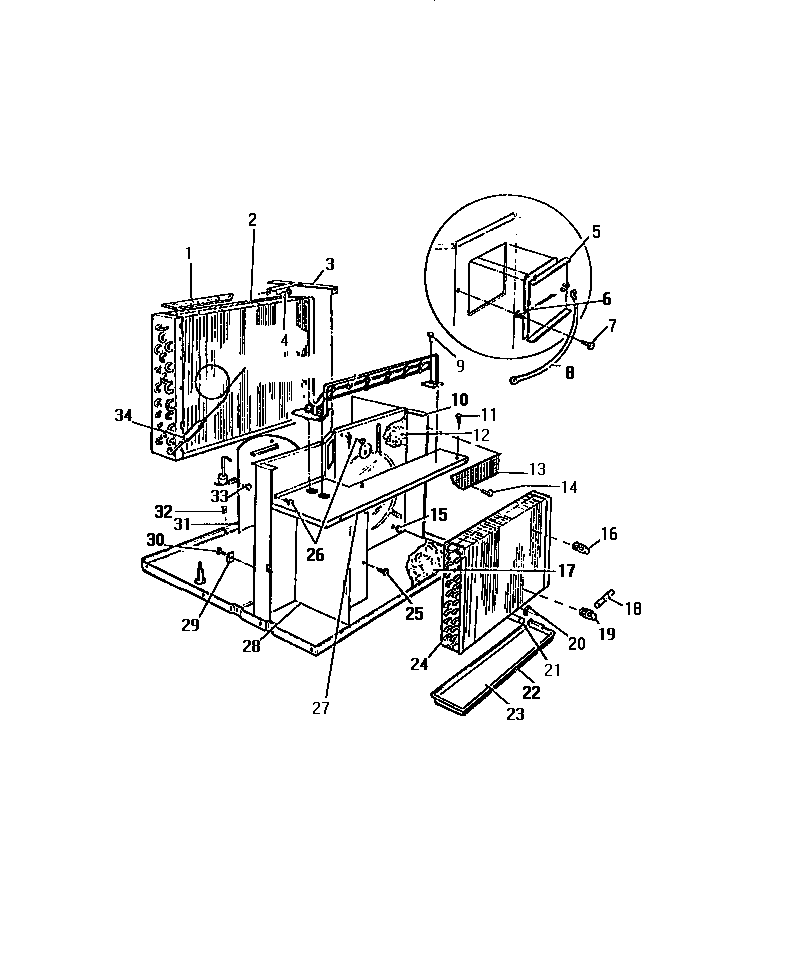

A6LECDC3 24 – EVAPORATOR, CONDENSER (`B` CABINET – Aparts

A6LECDC3 24 – EVAPORATOR, CONDENSER (`B` CABINET

Products

Position	Product
1	CONDENSER, TOP
1	WCI 8007704
2	WCI 8013765
3	WCI 8007696
5	WCI 8003023
6	WCI 8003049
8	CABLE-VENT DOOR
9	SCREW-SCROLL
10	WCI 8007689
12	INSULATION-REAR
13	WCI 8006842
15	WCI 8007565
17	WCI 8007537
18	INSULATOR-TUBE
19	CLIP-CAP. TUBE
20	WCI 8009027
21	WCI 8009022
22	WCI 8007535
23	TRAY
24	WCI 8013717
24	WCI 8013718
26	WCI 8002951
27	PARTITION-HORIZONTAL
28	DIVIDER-VERTICAL
29	WCI 8009025
30	SCREW (4)
31	WCI 8007703
32	CLIP-CONDENSER
33	WCI 8007702
34	DRIER
