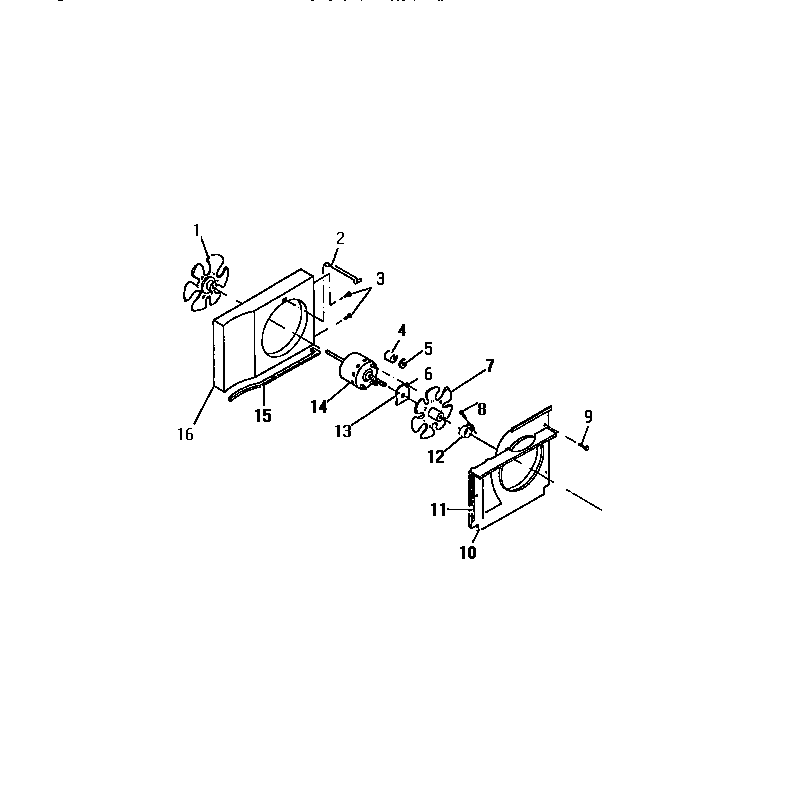

A6LECDD2 10 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Products

PositionProduct
*23129SCREW, FAN MOTOR MOUNTING (3)
*23128WCI 8012678
*23127SPACER, PLATE, SPLASH (2)
1FAN, CONDENSER (INCL. CLAMP AND SCREW)
2WCI 8007517
3SCREW, GROUND TO CONTROL PANEL
4AGROMMET (3)
4WCI 8006943
6NUT (3)
7FAN, EVAPORATOR (INCL. CLAMP)
8SCREW
9SCREW (4)
10SHROUD, EVAPORATOR
11SEAL
12CLAMP
13WCI 8007483
14WCI 8016165
15SEAL
16SHROUD, CONDENSER
