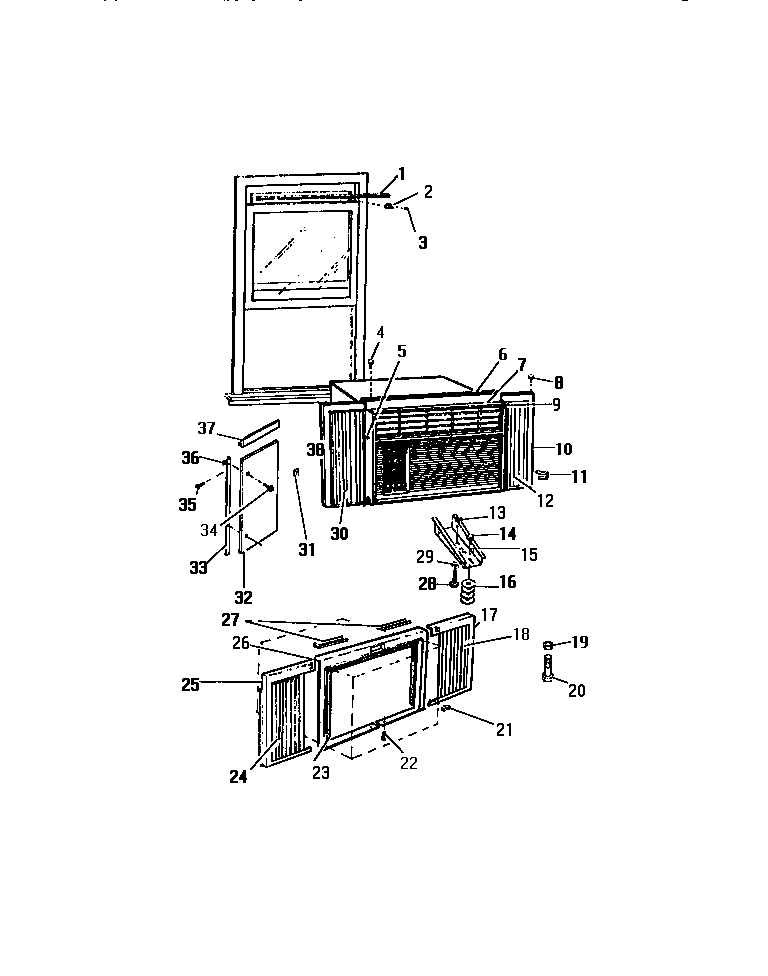

A6LECDD2 14 – CABINET, WINDOW MOUNTING PARTS (`AA

A6LECDD2 14 – CABINET, WINDOW MOUNTING PARTS (`AA

Written by

in

A6LECDD2 14 – CABINET, WINDOW MOUNTING PARTS (`AA

Products

Position	Product
1	SEAL-SASH
2	STOP, SASH
3	SCREW
4	SCREW
5	SCREW (6)
6	WCI 8007493
7	SEAL, RAIL
8	SCREW (2)
9	RETAINER (2)
9A	SCREW
10	CHANNEL, RH
11	CLIP-RETAINER
14	SCREW
15	WCI 8012989
16	WASHER
17	CHANNEL, E-Z HANDLE, R.H.
19	WCI 8016090
20	WCI 8016080
21	SEAL, SNUBBER (2)
22	SCREW (2)
23	WCI 8016103
24	WCI 8016111
25	CHANNEL, E-Z HANDLE, L.H.
26	FRAME, E-Z HANDLE
27	GUIDE (2)
28	SCREW-ADJUSTABLE
29	NUT
30	PANEL, ACCORDIAN
38	CHANNEL, LH
