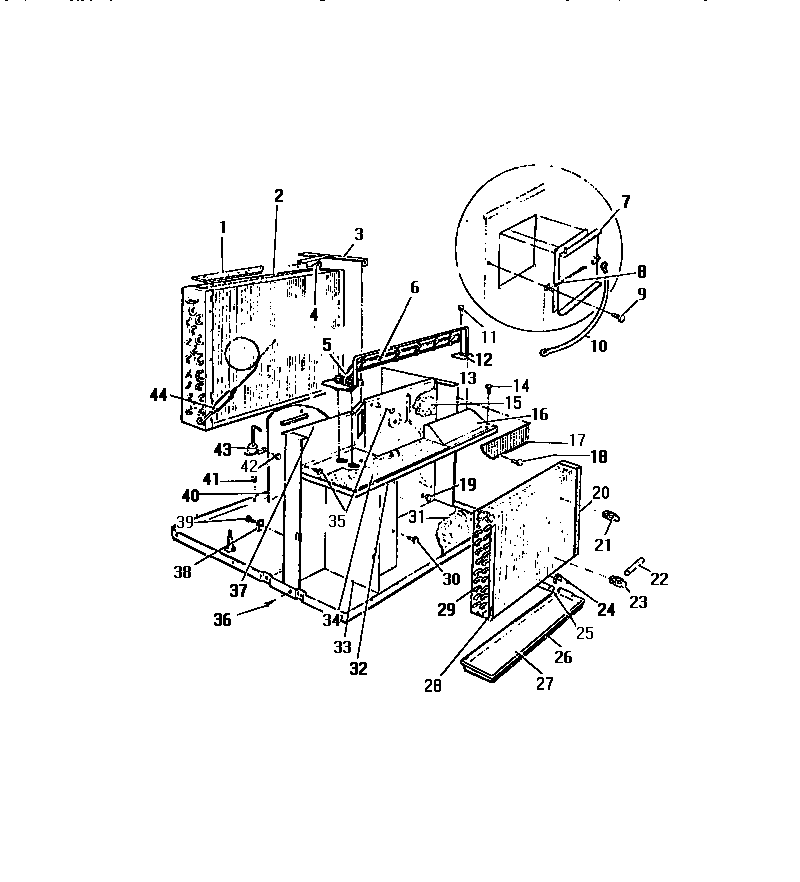

A6LECDD2 32 – EVAPORATOR, CONDENSER (`B` CABINET

Products

Position	Product
*23142	WCI 8012972
*23141	WCI 8013698
*23143	WCI 8012971
*23144	WCI 8016102
1	WCI 8007704
1	CONDENSER, TOP
2	WCI 8014108
2	WCI 8013765
3	WCI 8007696
5	WCI 8016406
6	WCI 9948988
7	WCI 8006929
8	WCI 8003049
10	WCI 8016389
10	CABLE-VENT DOOR
11	SCREW, GROUND TO CONTROL PANEL
12	WCI 8009091
13	WCI 8007689
15	INSULATION-REAR
16	WCI 8016084
17	WCI 8006842
18	SCREW (2)
19	WCI 8007565
20	SEAL, EVAPORATOR BRACKET, WRAPPER
22	INSULATOR-TUBE
22	4`` INSULATOR
23	CLIP-CAP. TUBE
24	WCI 8009027
25	WCI 8009022
26	DOOR
27	TRAY
28	SEAL, EVAPORATOR BRACKET, CONTACT TUBE
29	WCI 8013718
29	WCI 8014111
31	WCI 8007537
32	WCI 8011108
32	PARTITION-HORIZONTAL
33	DIVIDER-VERTICAL
34	WCI 8016083
35	WCI 8002951
36	SCREWS
37	WCI 8007688
38	WCI 8009025
39	SCREW (4)
40	WCI 8007703
41	CLIP-CONDENSER
42	WCI 8007702
43	WCI 8007698
44	DRIER
