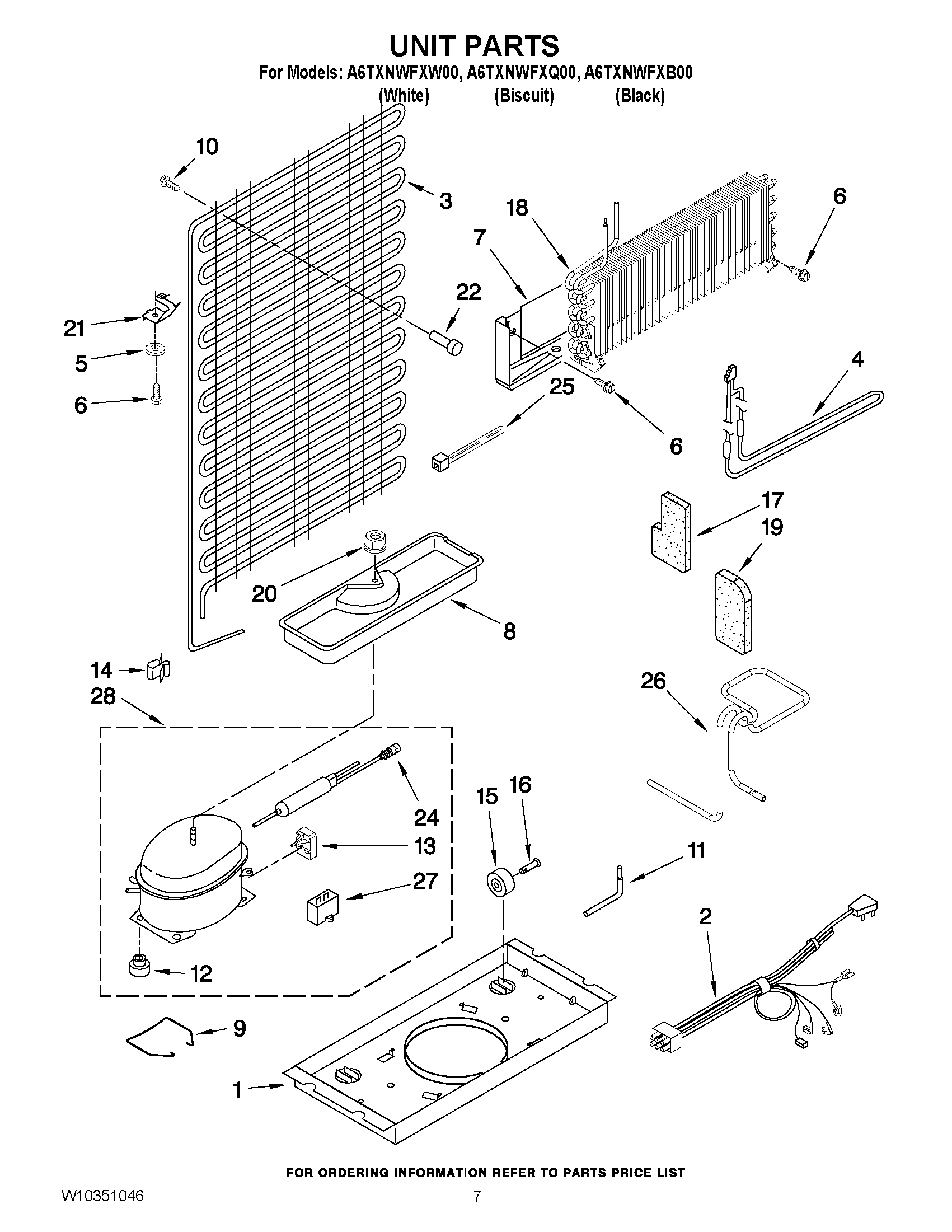

A6TXNWFXB00 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY W10222451
2	WIRE ASSEMBLY UNIT
3	MAY W10219348
4	MAY 2263749
5	MAY VS611
6	MAY 489442
7	MAY 2319224
8	MAY 2201801
9	STRAP, BALE
10	MAY 8533892
11	MAY VS20001
12	Grommet (Production)
13	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
13	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
14	MAY 939054
15	Roller
16	RIVET, AXLE
17	Wedge-Evap.
18	EVAPORATOR ASSY
19	MAY 2262192
20	MAY 489153
21	MAY 2172892
22	MAY 2258452
24	DRIER (PRODUCTION)
24	Drier
25	MAY 2263990
26	MAY W10289688
27	Capacitator (Production)
27	CAPACITATOR (SERVICE)
28	COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
