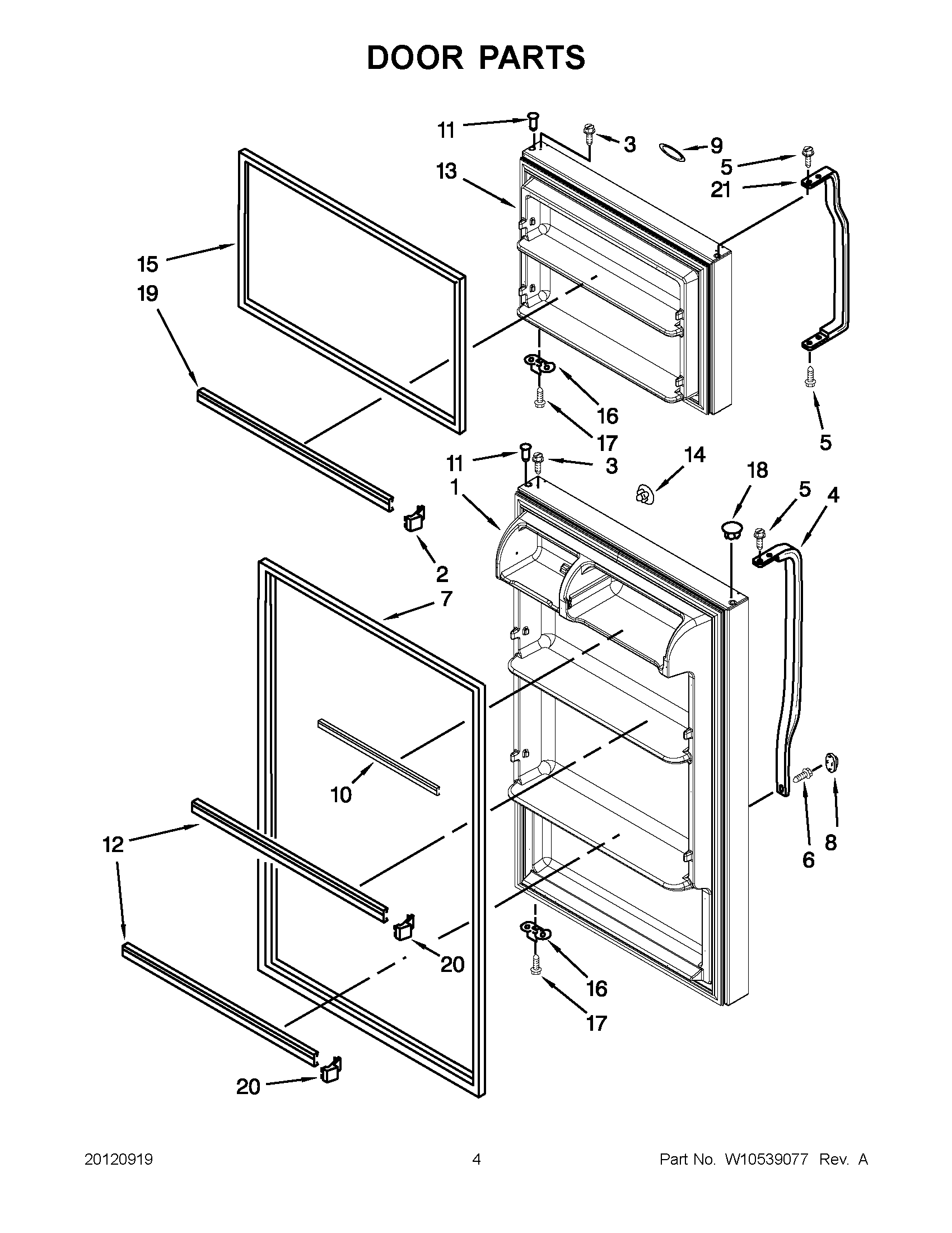

A6TXNWFXW01 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 7) (WHITE)
2END CAP, TRIM
4Handle, Refrigerator (White)
5MAY 489357
6MAY 8281206
7DOOR GASKET, MAGNETIC (BEIGE)
8Screw Cover (White)
9NAMEPLATE (SILVER)
10MAY W10234242
11MAY 2262054
12MAY 2266738
13FREEZER DOOR (INCLUDES ILLUS. 14,18 & 24) (WHITE)
14Hole Plug, Handle
15Door Gasket, Magnetic
16MAY 2189202
17MAY 488921
18MAY 2212648
19MAY 2266727
20PLUG-TRIM
21Handle, Freezer (White)
