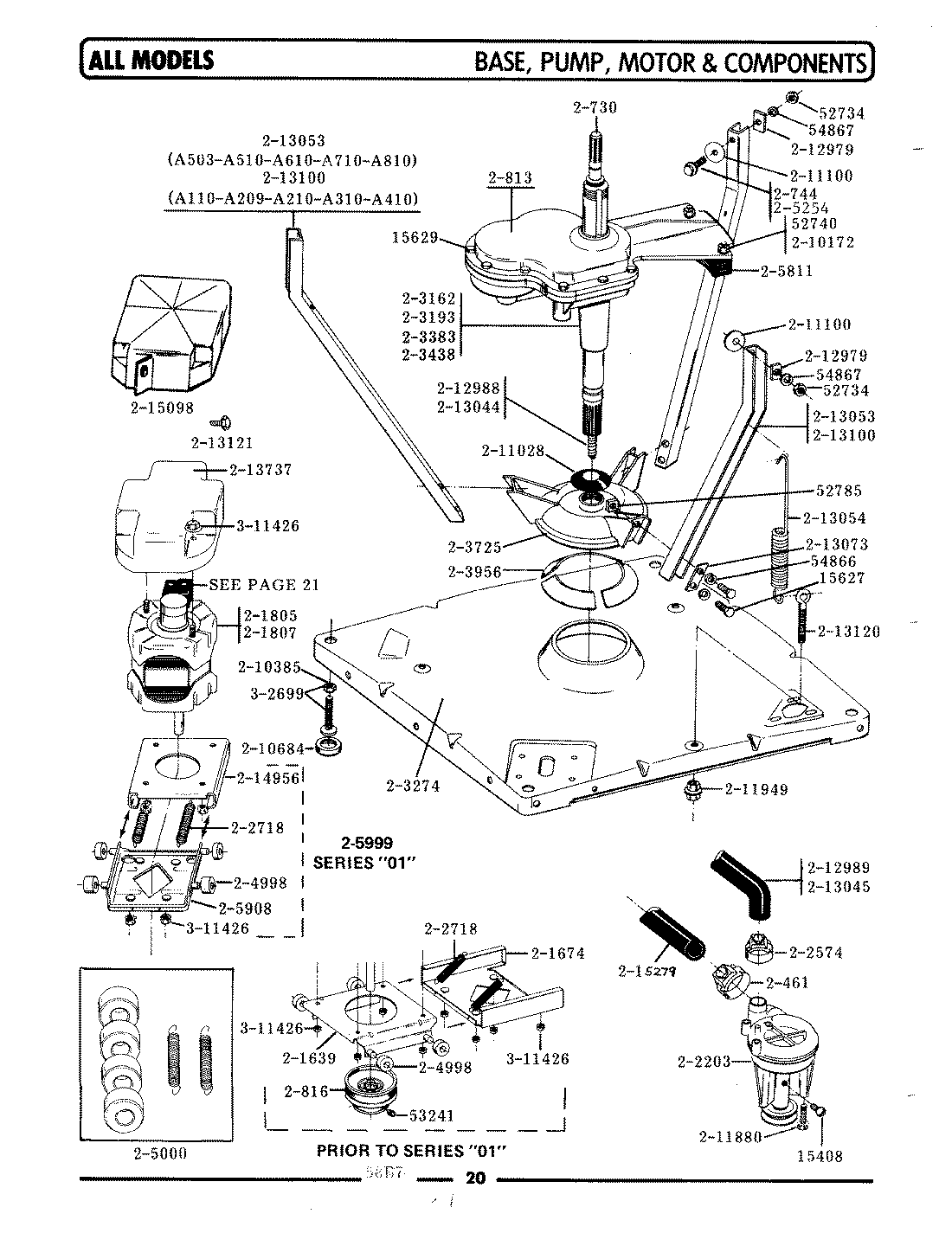

A710S 01 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
NI	205000 Whirlpool Motor Spring and Guide Kit
NI	MAY 205811
NI	203956 Whirlpool Damper Pads 3 Pack with Poly
NI	MAY 200750
NI	2-1664-8 AND 2-5463
NI	MAY 205908
NI	MAY 205134
1	MAY Y015408
3	MAY Y015629
4	MAY Y052734
5	WP62739 Whirlpool Nut
6	MAY Y052785
7	MAY Y053241
8	MAY Y054866
9	MAY Y054867
10	MAY 200461
11	MAY 200730
12	W10175939 Whirlpool Bolt Assembly
14	MAY 200813
15	MAY 200816
16	MAY 201639
17	MAY 201674
18	MAY 201807
19	MAY 202203
20	WP285655 Whirlpool Hose Clamp
21	202718 Whirlpool Tension Spring
22	MAY 203193
23	MAY 203274
24	PART NOT USED
25	MAY 203725
27	MAY 203383
28	MAY 204807
31	MAY 205131
32	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
37	MAY 205999
38	MAY 210172
39	WP210385 Whirlpool Lock Nut
40	WP210684 Whirlpool Dishwasher Leveling Leg Pad
41	MAY 211028
42	MAY 211100
43	WPY014874 Whirlpool Screw
44	WP211949 Whirlpool Nut
45	MAY 212979
46	PART NOT USED
47	WP213045 Whirlpool Dishwasher Tub to Pump Hose
48	PART NOT USED
49	MAY 213054
50	MAY 213073
51	MAY 213120
52	WPW10346892 Whirlpool Screw
53	MAY 213737
54	WP22003410 Whirlpool Drain Hose
55	MAY 214956
56	MAY 215098
57	LEG, ADJUSTABLE (W/NUT)—S
58	WP3400029 Whirlpool Dishwasher Nut
