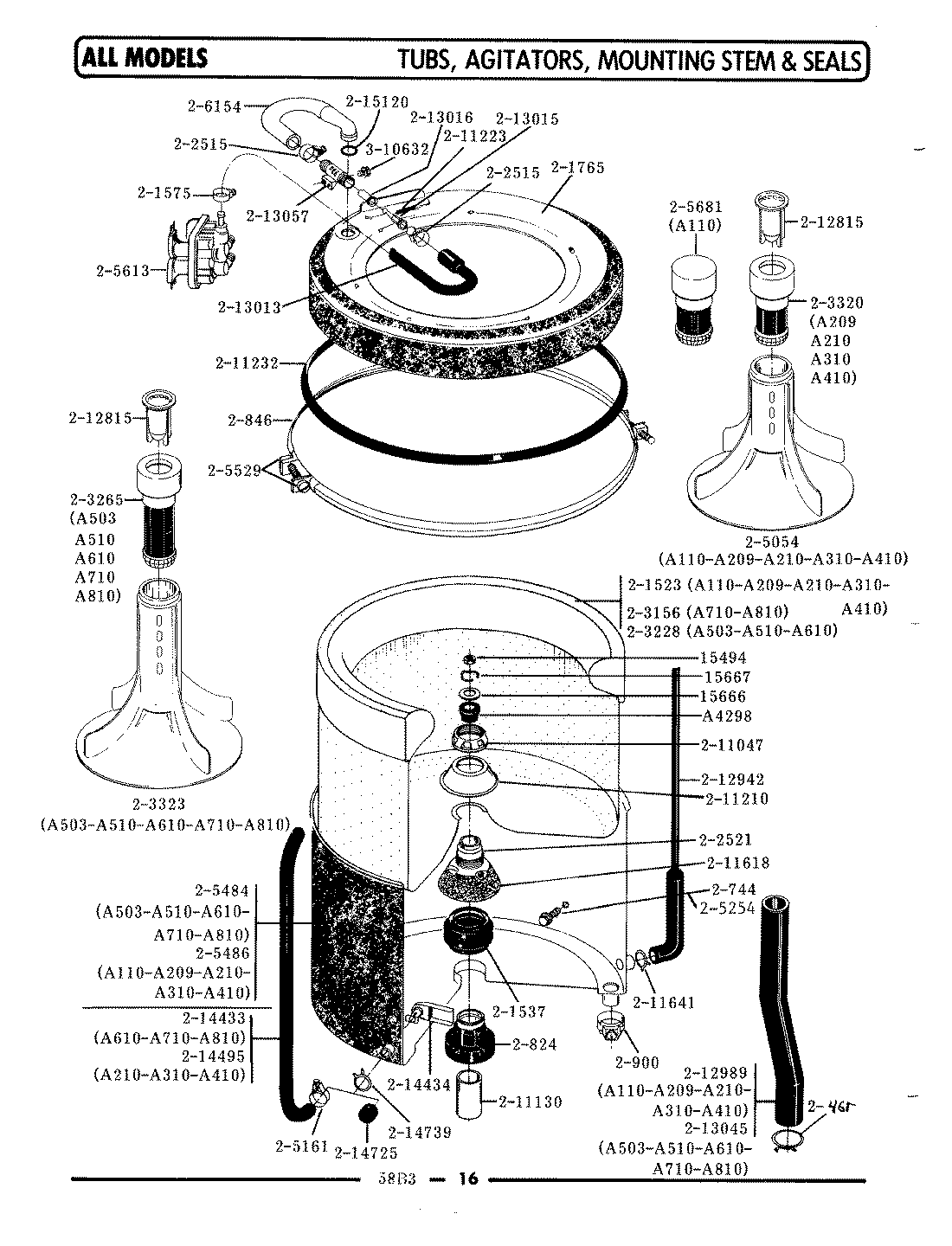

A710S 08 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

Position	Product
NI	WP489503 Whirlpool Refrigerator Clamp
NI	WP285655 Whirlpool Hose Clamp
NI	MAY Y054867
NI	PART NOT USED
1	MAY A04298
2	MAY Y015494
3	WPY015666 Whirlpool Washer Retainer
4	MAY Y015667
6	W10175938 Whirlpool Bolt
6	W10175939 Whirlpool Bolt Assembly
7	6-2040130 Whirlpool Washer Tub Bearing Kit
9	MAY 200900
10	MAY 201537
11	WP596669 Whirlpool Hose Clamp
12	MAY 201765
14	MAY 202521
16	MAY 203265
17	MAY 203323
18	MAY 204012
23	205613 Whirlpool Washer Water Inlet Valve
24	MAY 206154
25	WP6-2110472 Whirlpool Nut Clamp
26	MAY 211100
27	MAY 211130
28	MAY 211210
29	MAY 211223
30	WP211232 Whirlpool Seal
31	MAY 211618
33	MAY 212815
34	MAY 212942
35	WP213013 Whirlpool Injector Hose
36	WP213015 Whirlpool Nozzle Injector Tube
37	WP216201 Whirlpool Rubber Injector Valve
38	WP213045 Whirlpool Dishwasher Tub to Pump Hose
39	MAY 213057
40	WP214433 Whirlpool Inlet Tube
41	MAY 214434
42	MAY 214725
44	MAY 200461
45	MAY 215120
46	MAY Y310632
