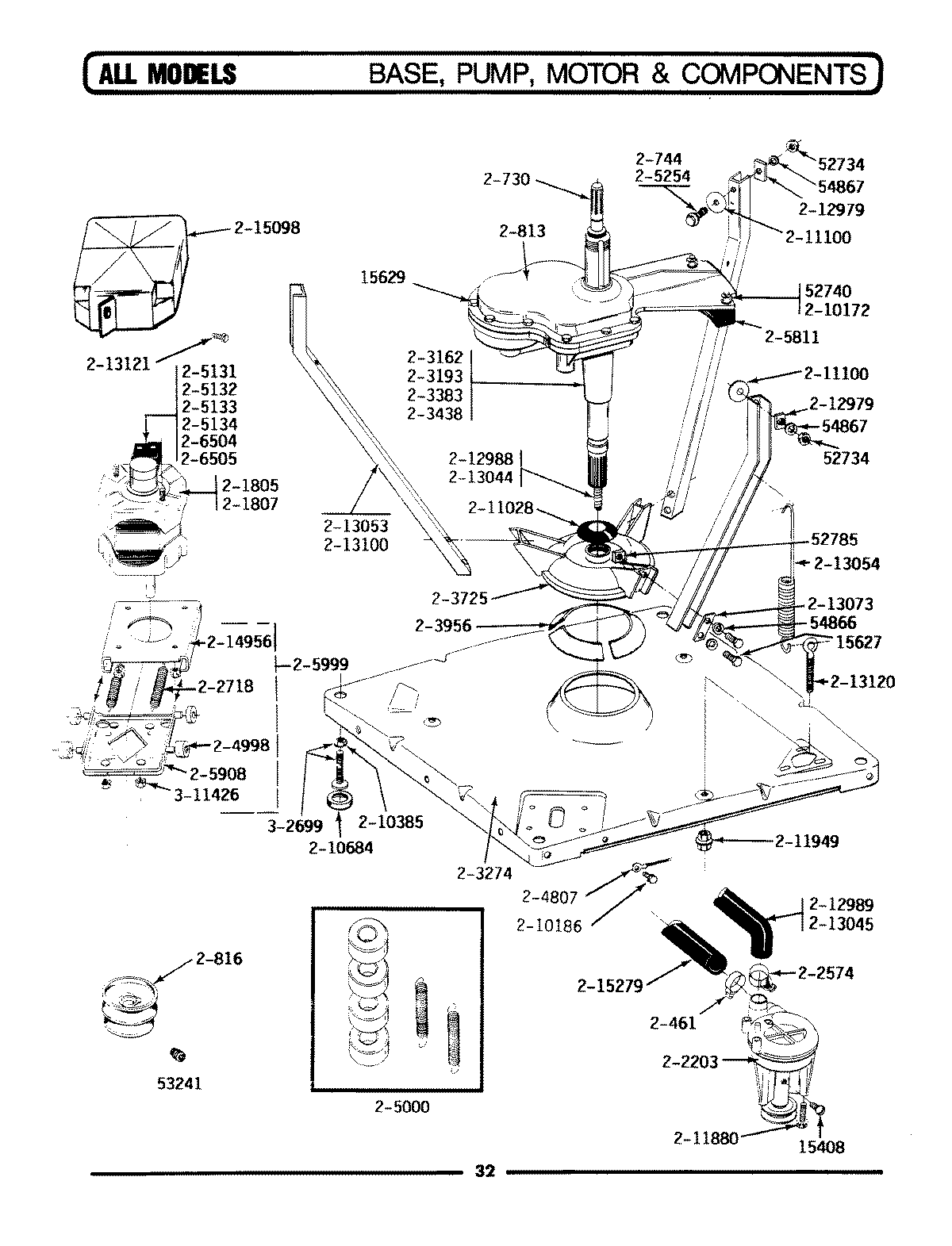

A712 01 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
1	MAY Y015408
3	MAY Y015629
4	MAY Y052734
5	WP62739 Whirlpool Nut
6	MAY Y052785
7	MAY Y053241
8	MAY Y054866
9	MAY Y054867
10	MAY 200461
11	MAY 200730
12	W10175939 Whirlpool Bolt Assembly
13	MAY 200813
14	MAY 200816
15	MAY 201807
16	MAY 202203
17	WP285655 Whirlpool Hose Clamp
18	202718 Whirlpool Tension Spring
20	MAY 203274
22	MAY 203725
23	203956 Whirlpool Damper Pads 3 Pack with Poly
24	MAY 204807
25	205000 Whirlpool Motor Spring and Guide Kit
27	MAY 205131
28	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
29	2-1664-8 AND 2-5463
30	MAY 205134
31	W10175938 Whirlpool Bolt
32	MAY 205811
33	MAY 205908
34	MAY 205999
35	MAY 206504
36	2-1664-11 AND 2-5463-1
37	MAY 210172
38	MAY 210186
39	WP210385 Whirlpool Lock Nut
40	WP210684 Whirlpool Dishwasher Leveling Leg Pad
41	MAY 211028
42	MAY 211100
43	WPY014874 Whirlpool Screw
44	WP211949 Whirlpool Nut
45	MAY 212979
47	WP213045 Whirlpool Dishwasher Tub to Pump Hose
49	MAY 213054
50	MAY 213073
51	MAY 213120
52	WPW10346892 Whirlpool Screw
53	MAY 214956
54	MAY 215098
55	WP22003410 Whirlpool Drain Hose
56	LEG, ADJUSTABLE (W/NUT)---S
57	WP3400029 Whirlpool Dishwasher Nut
