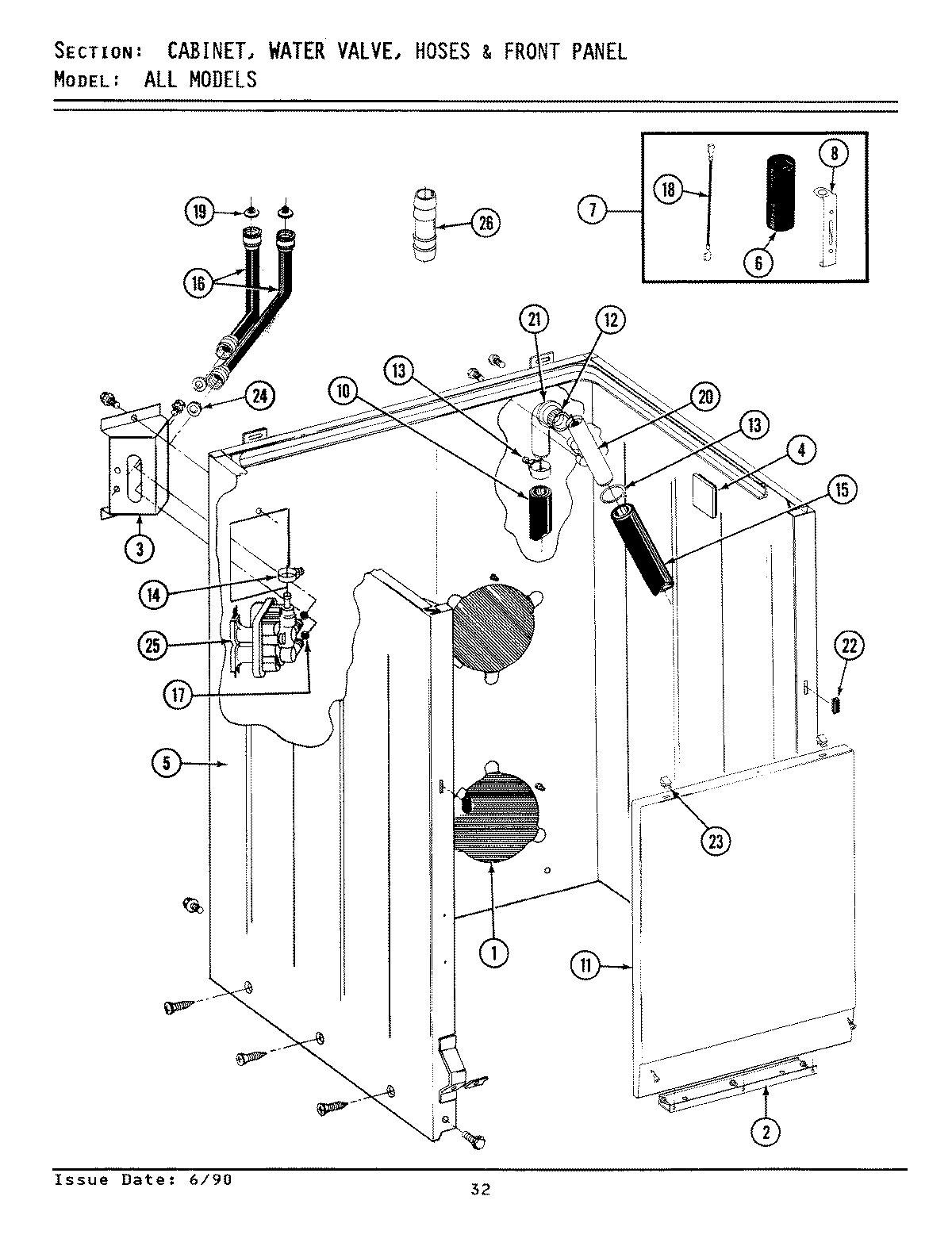

A7500S 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

A7500S 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Written by

in

A7500S 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Products

PositionProduct
NIMAY 202861
1MAY 211878
2MAY 213846
2WP90767 Whirlpool Screw
3MAY 214812
4MAY 215058
5WPW10346892 Whirlpool Screw
5MAY 203319M
5213007 Whirlpool Screw #12
5WP27001200 Whirlpool Screw
5SCREW & FSTNER ASSY (FT. PNL)
5MAY 203319
5MAY 203319L
6MAY Y200832
7MAY 206103
8MAY 211149
10WP22003410 Whirlpool Drain Hose
10MAY 216017
10MAY Y059149
11MAY 212998
11MAY 212998L
11MAY 212998M
12WP214765 Whirlpool Gasket
13MAY 200908
13MAY 200461
14WP596669 Whirlpool Hose Clamp
15MAY 214767
16MAY 200681
16WP76314 Whirlpool Fill Hose
16202860 Whirlpool Inlet Hose 5 FT
16MAY 205828
17WP96160 Whirlpool Washer Inlet Valve Screen
18MAY 203237
19MAY 200961
20WPY014874 Whirlpool Screw
20206638 Whirlpool Break Siphon Connector Kit
21MAY 214764
21WPW10116738 Whirlpool Elbow Connector
22MAY 214376
23MAY 212982
24MAY Y013783
25205613 Whirlpool Washer Water Inlet Valve
25MAY 212276
26MAY Y216015
