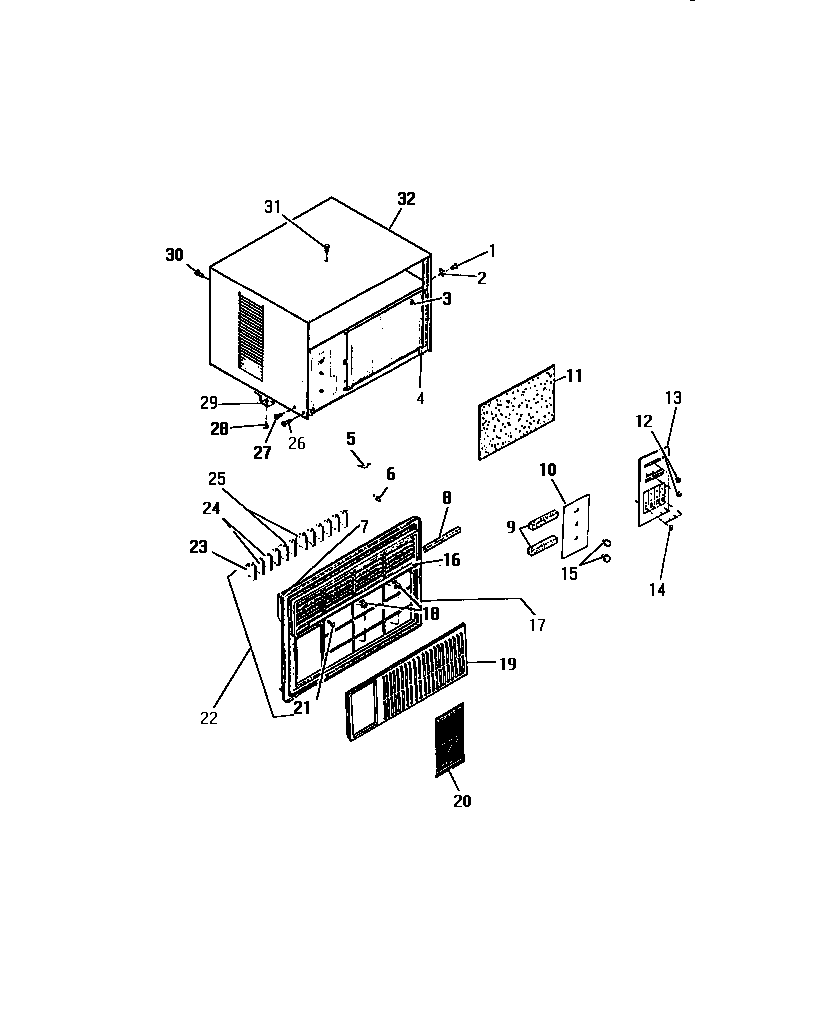

A7LECUD2 08 – CABINET FRONT (`AAA` CABINET MODELS

Products

PositionProduct
*23126WCI 8007474
1SCREW-FRONT LOCKING
2NUT
3CLIP-CAP. TUBE
4CLIP (2)
5WCI 8009030
6HANDLE (2)
7WCI 8007461
8SEAL
9SEAL-ESCUTCHEON
11WCI 8009018
12KNOB-SLIDE CONTROL
13WCI 8016212
14WCI 8016116
15WCI 8016109
16INSERT, MULLION
17WCI 8016183
18SPRING, CLIP RETAINING (4)
19WCI 8016185
20DOOR, CONTROL
21SCREW-FRONT
22WCI 8016203
23LOUVER (12)
24WCI 8014228
25LINK-LOUVER (2)
27SCREW (4)
28SCREW (2)
29SUPPORT
30SCREW (8)
31SCREW
32WCI 8016099
