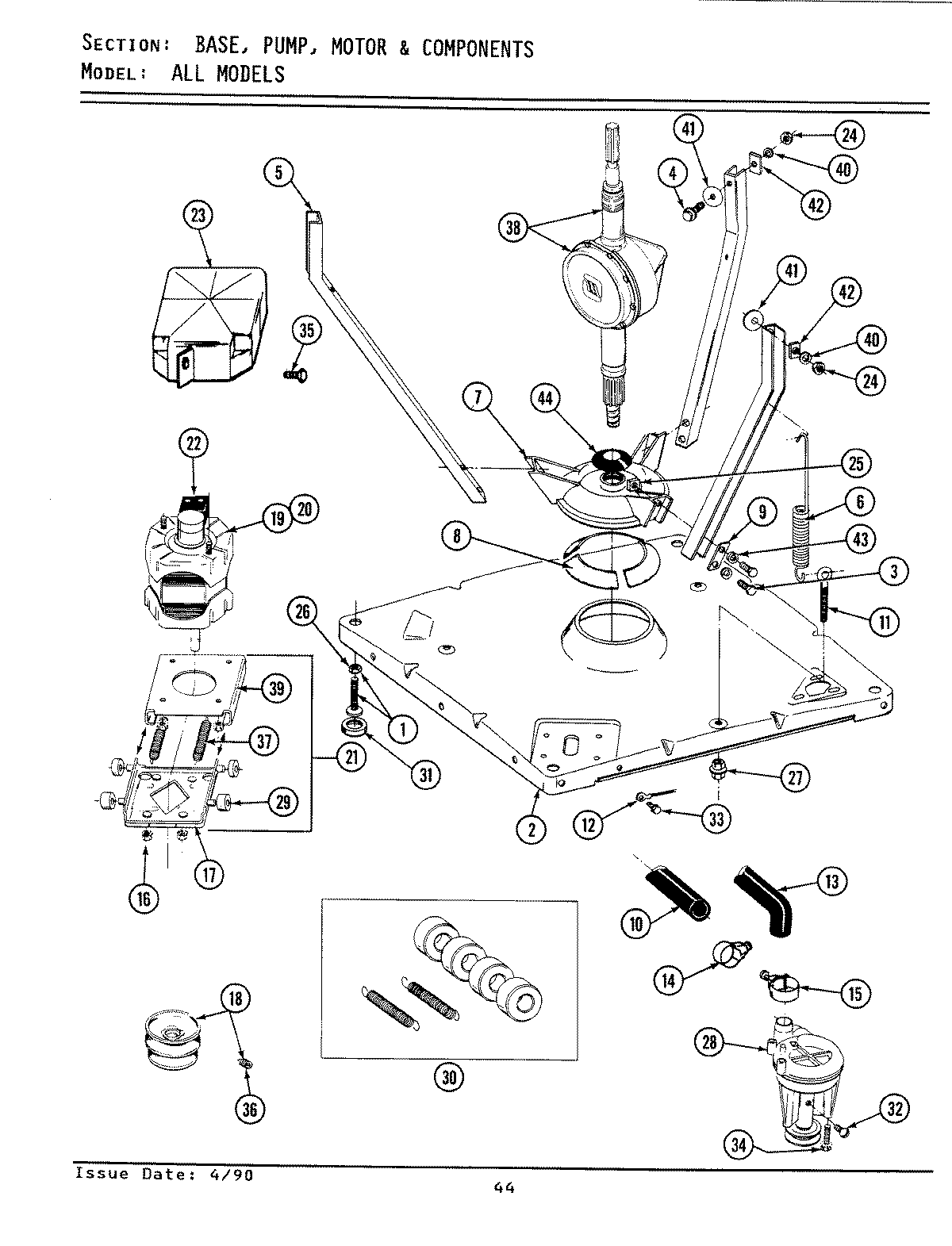

A8640 01 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
1	LEG, ADJUSTABLE (W/NUT)---S
2	MAY 203274
4	W10175939 Whirlpool Bolt Assembly
4	W10175938 Whirlpool Bolt
5	PART NOT USED
6	MAY 213054
7	MAY 203725
8	203956 Whirlpool Damper Pads 3 Pack with Poly
9	MAY 213073
10	MAY 214767
11	MAY 213120
12	MAY 204807
13	WP213045 Whirlpool Dishwasher Tub to Pump Hose
14	MAY 200461
15	WP285655 Whirlpool Hose Clamp
16	MAY 311246
17	MAY 205908
18	MAY 200816
19	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
20	MAY 201807
21	MAY 205999
22	MAY 205134
22	MAY 205131
22	2-1664-11 AND 2-5463-1
22	MAY 206504
22	2-1664-8 AND 2-5463
22	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
23	MAY 215098
24	MAY Y052734
25	MAY Y052785
26	WP210385 Whirlpool Lock Nut
27	WP211949 Whirlpool Nut
28	MAY 202203
29	205000 Whirlpool Motor Spring and Guide Kit
31	WP210684 Whirlpool Dishwasher Leveling Leg Pad
32	MAY Y015408
33	MAY 210186
34	WPY014874 Whirlpool Screw
35	WPW10346892 Whirlpool Screw
36	MAY Y053241
37	202718 Whirlpool Tension Spring
38	MAY 206707
39	MAY 214956
40	MAY Y054867
41	MAY 211100
42	MAY 212979
43	MAY 911852
44	MAY 211028
