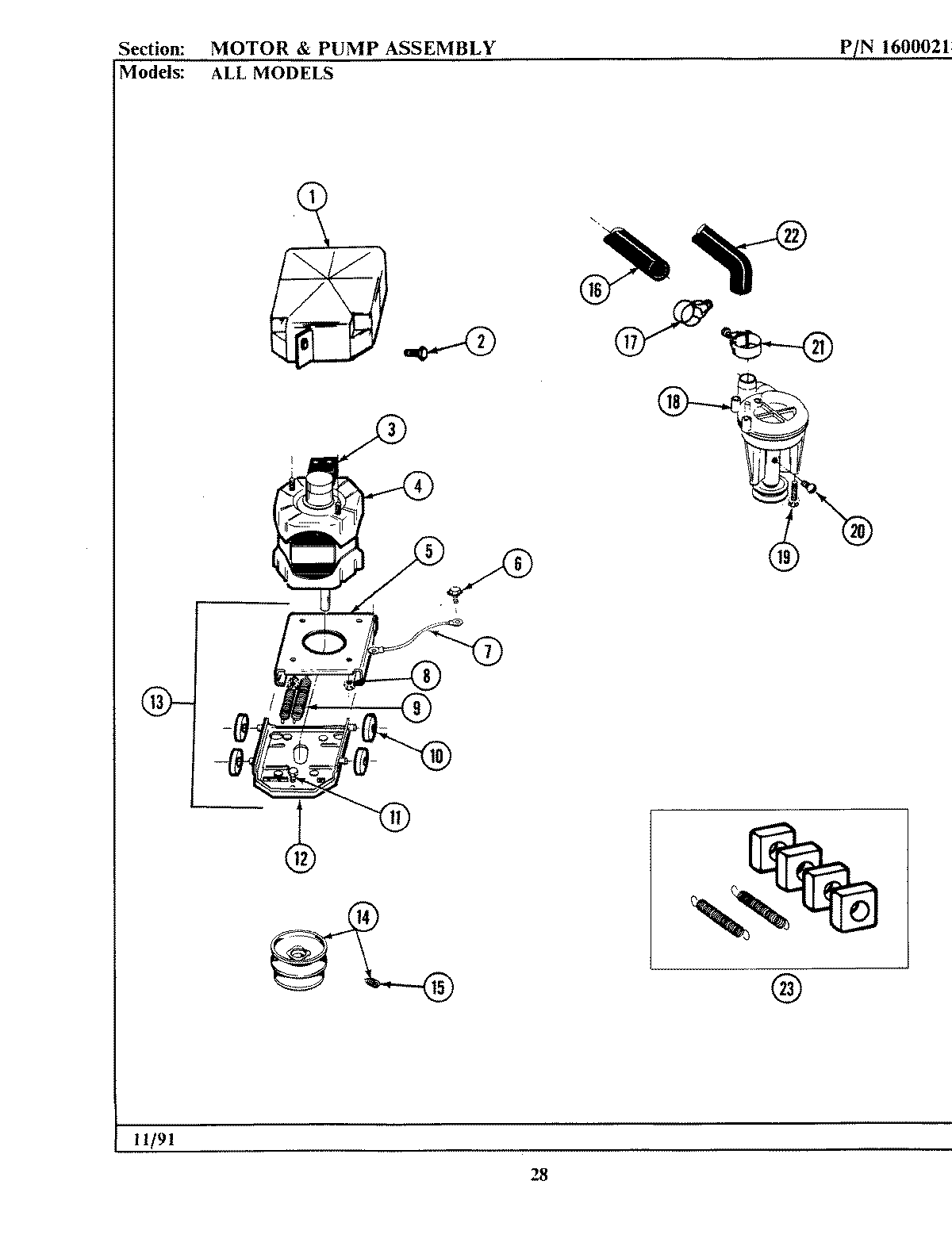

A884 05 – MOTOR & PUMP ASSEMBLY

A884 05 – MOTOR & PUMP ASSEMBLY

Written by

in

A884 05 – MOTOR & PUMP ASSEMBLY

Products

PositionProduct
1MAY 215098
2WPW10346892 Whirlpool Screw
3SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
32-1664-8 AND 2-5463
3MAY 205131
3MAY 205134
3MAY 206504
4MAY 201807
5MAY 214956
6MAY 210186
7MAY 901220
8WP3400029 Whirlpool Dishwasher Nut
9202718 Whirlpool Tension Spring
10205000 Whirlpool Motor Spring and Guide Kit
11MAY Y313561
12MAY 205908
13MAY 205999
14MAY 200816
15MAY Y053241
16MAY 214767
17MAY 200461
18MAY 202203
19WPY014874 Whirlpool Screw
20MAY Y015408
21WP285655 Whirlpool Hose Clamp
22WP213045 Whirlpool Dishwasher Tub to Pump Hose
