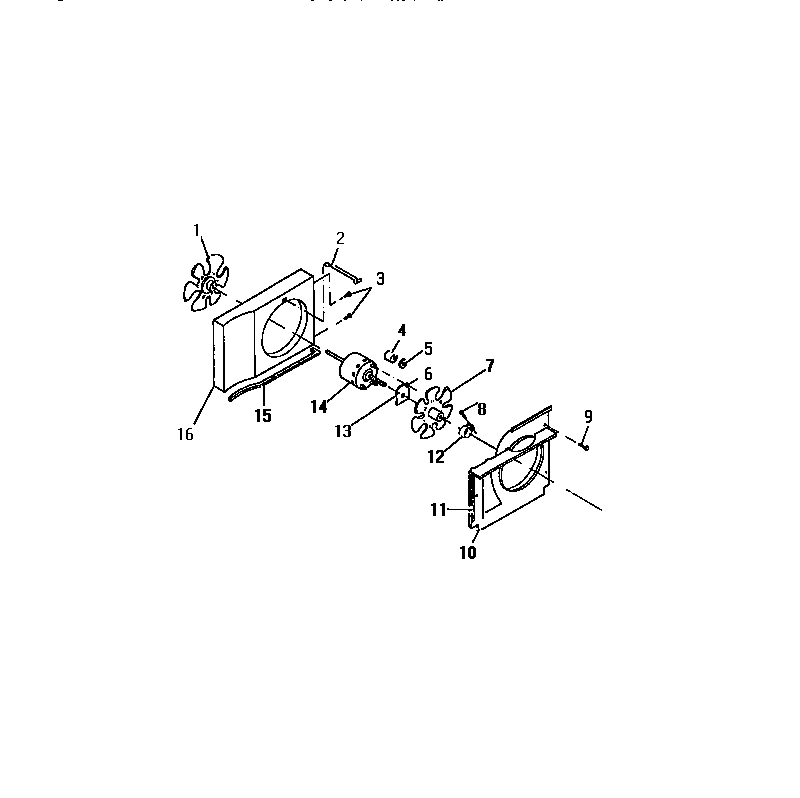

A8MECD2 10 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Products

PositionProduct
*23127SPACER, PLATE, SPLASH (2)
*23128WCI 8012678
*23129SCREW, FAN MOTOR MOUNTING (3)
1WCI 8010951
2WCI 8007517
3SCREW, GROUND TO CONTROL PANEL
4AWCI 8013766
4WCI 8006943
6NUT (3)
7FAN, EVAPORATOR (INCL. CLAMP)
8SCREW
9SCREW (4)
10SHROUD, EVAPORATOR
11SEAL
12CLAMP
13WCI 8007483
14WCI 8009144
15SEAL
16SHROUD, CONDENSER
