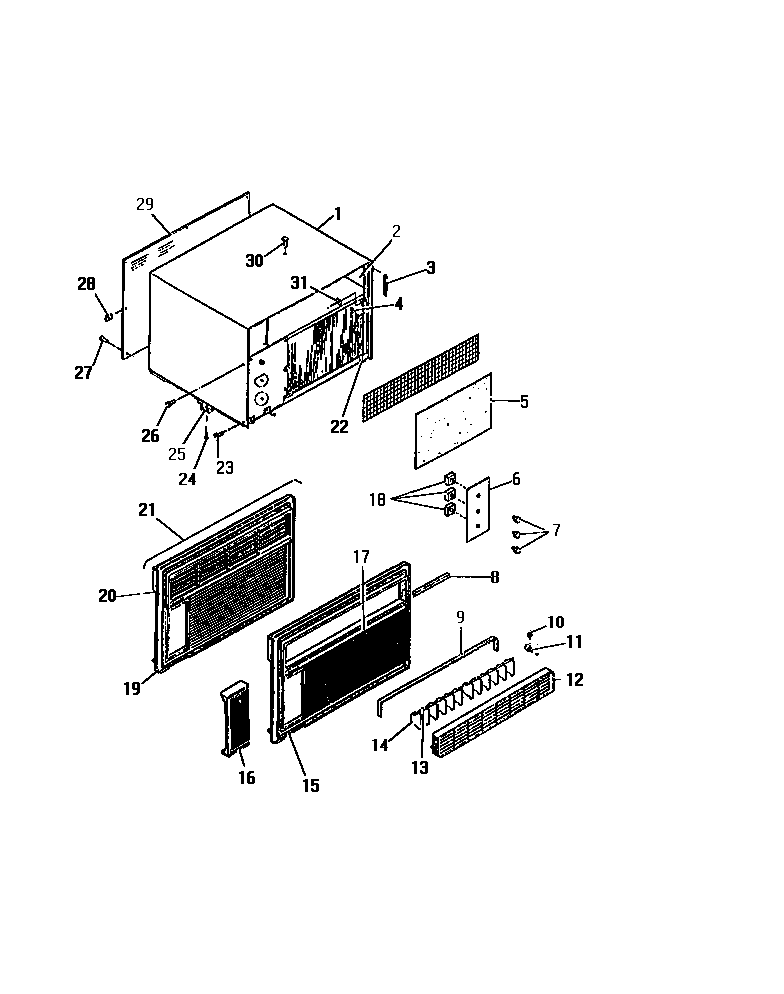

A8MECUC2 21 – CABINET, FRONT (`B` CABINET MODELS) – Aparts

A8MECUC2 21 – CABINET, FRONT (`B` CABINET MODELS)

Products

Position	Product
1	WCI 8010935
2	INSULATION-SHELL, R. SIDE
2	INSULATION-SHELL, L. SIDE
2	WCI 8009355
3	SEAL-CABINET, FRONT
3	WCI 8009359
3	WCI 8009358
4	CLIP-CAP. TUBE
5	WCI 8009020
6	WCI 8009094
7	KNOB-CONTROL (3)
8	WCI 8014104
9	WCI 8007684
10	PAD (2)
11	HANDLE (2)
12	WCI 8007846
13	WCI 8013697
14	LOUVER (12)
15	WCI 8013733
16	HOUSING, ALMOND
17	WCI 8013748
18	SPACER
19	WCI 8011041
20	WCI 8007859
21	WCI 8013741
22	CLIP-FRONT TO BASE
23	SCREW
24	SCREW (2)
25	SUPPORT
26	SCREW-FRONT LOCKING
28	NUT
29	PANEL-REAR
30	SCREW
31	WCI 8010928
