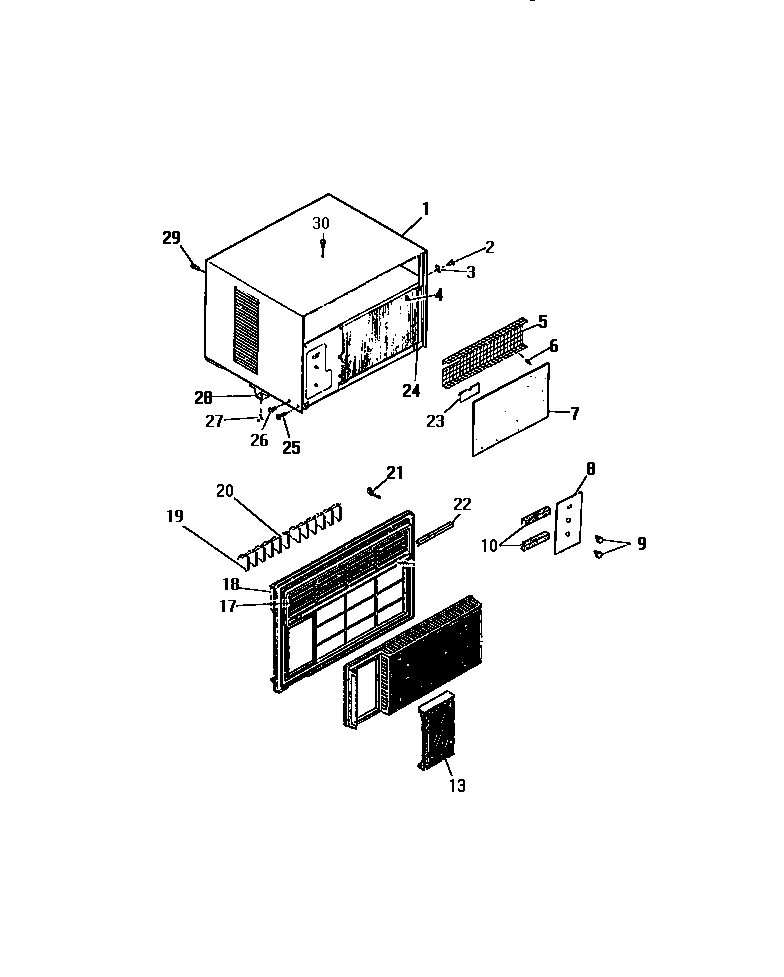

A8MECUSC2 09 – CABINET FRONT (`AAA` CABINET MODELS

A8MECUSC2 09 – CABINET FRONT (`AAA` CABINET MODELS

Written by

in

A8MECUSC2 09 – CABINET FRONT (`AAA` CABINET MODELS

Products

PositionProduct
1SHELL
2SCREW-FRONT LOCKING
3NUT
4CLIP-CAP. TUBE
5WCI 8013091
6SCREW-SCROLL
7WCI 8009018
8WCI 8013050
8WCI 8006837
9KNOB-CONTROL (3)
10SEAL
13WCI 8013621
17WCI 8011235
18WCI 8007461
19LOUVER (12)
19LOUVER (12)
20LINK-LOUVER (2)
21WCI 8013141
22WCI 8013056
22SEAL
23WCI 8012956
24CLIP (2)
26SCREW (4)
27SCREW (2)
28SUPPORT
30SCREW
