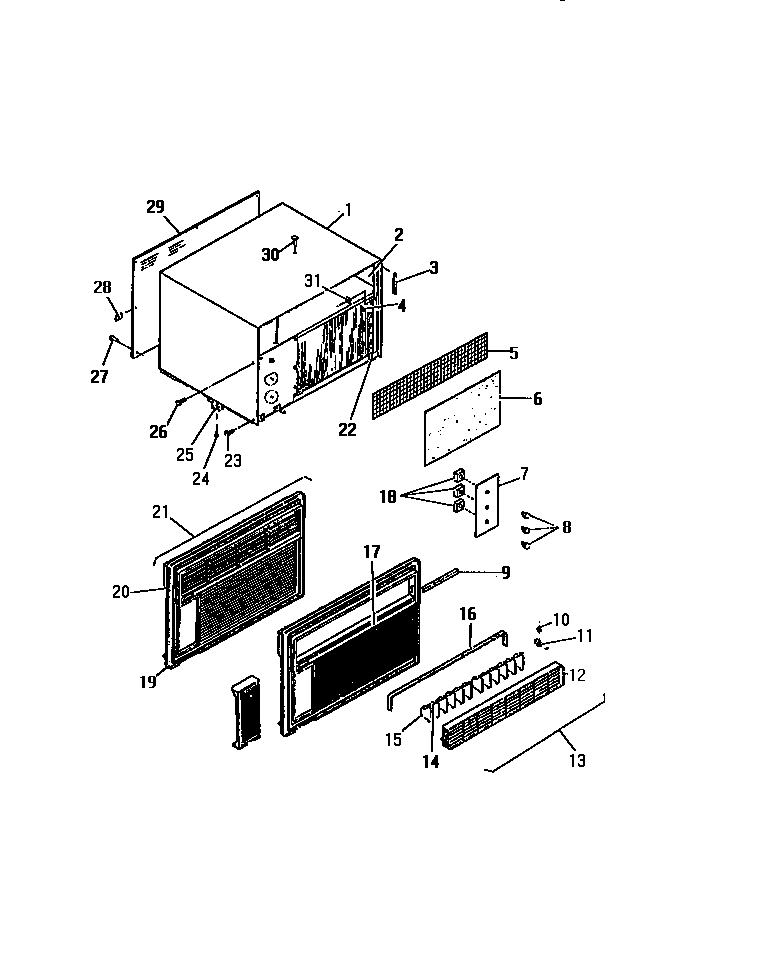

A8MECUSC2 16 – CABINET, FRONT (`B` CABINET MODELS)

A8MECUSC2 16 – CABINET, FRONT (`B` CABINET MODELS)

Written by

in

A8MECUSC2 16 – CABINET, FRONT (`B` CABINET MODELS)

Products

PositionProduct
1WCI 8013178
1WCI 8010936
1WCI 8013175
2WCI 8013068
2INSULATION-SHELL, R. SIDE
2INSULATION-SHELL, L. SIDE
2WCI 8009355
2WCI 8007542
2WCI 8013069
3WCI 8009359
3WCI 8009358
3SEAL-CABINET, FRONT
4CLIP-CAP. TUBE
5SCREEN
6WCI 8009019
6WCI 8009020
7WCI 8012969
7WCI 8009094
7WCI 8006841
8KNOB-CONTROL (3)
9WCI 8013174
9WCI 8014104
9WCI 8007681
10PAD (2)
11HANDLE (2)
11WCI 8007498
12WCI 8007846
13LOUVER & GRILL ASSEMBLY
14WCI 8013697
15LOUVER (12)
16WCI 8007684
17WCI 8013783
17WCI 8013748
17WCI 8009110
18SPACER
18SPACER
19FRAME
19WCI 8013179
19WCI 8013180
20WCI 8007859
21WCI 8013742
21WCI 8013745
21WCI 8013033
21WCI 8010963
22CLIP-FRONT TO BASE
23SCREW
24SCREW (2)
25SUPPORT
26SCREW-FRONT LOCKING
28NUT
29PANEL-REAR
30SCREW
31WCI 8010928
