A8MECUSC3 12 – EVAPORATOR, CONDENSER (`AAA` CABINE

A8MECUSC3 12 – EVAPORATOR, CONDENSER (`AAA` CABINE

Written by

in

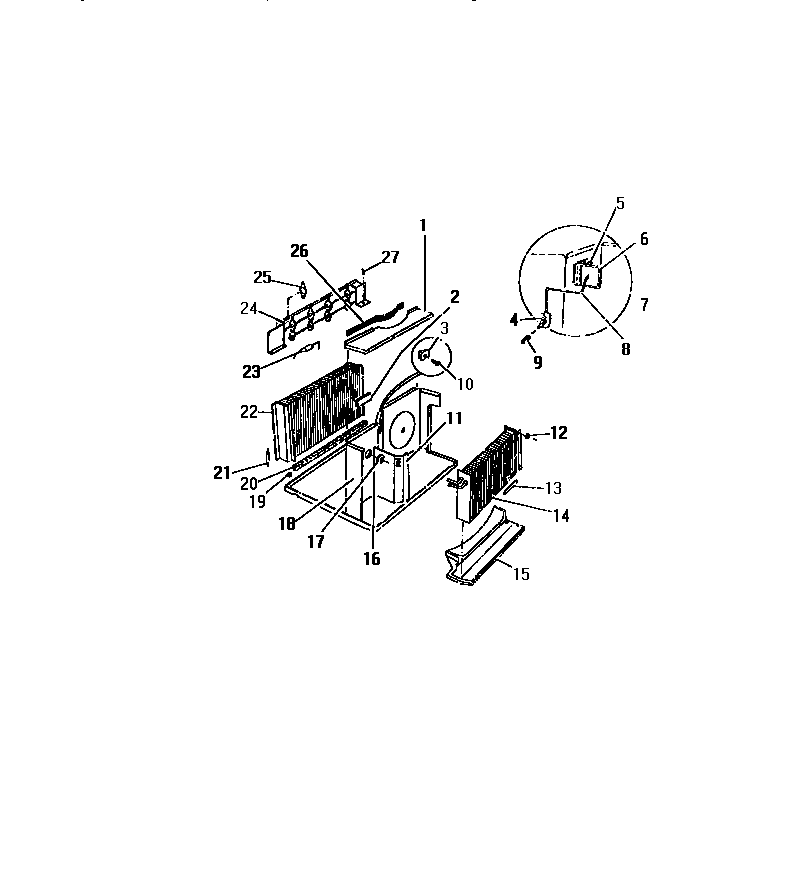

A8MECUSC3 12 – EVAPORATOR, CONDENSER (`AAA` CABINE

Products

PositionProduct
1PARTITION, HORIZONTAL
2WCI 8006453
3WCI 8009025
4WCI 8007514
5WCI 8007477
6WCI 8006918
7WCI 8007511
8WCI 8007499
9WCI 8007500
10SCREW (4)
11INSULATION
12SPACER (2)
13INSULATOR-TUBE
14EVAPORATOR
15WCI 8006917
16DIVIDER, VERTICAL
17GROMMET
18WCI 8010970
19CLIP-CONDENSER
20SEAL
21DRIER
22WCI 8014234
26SEAL
27WCI 8002951
