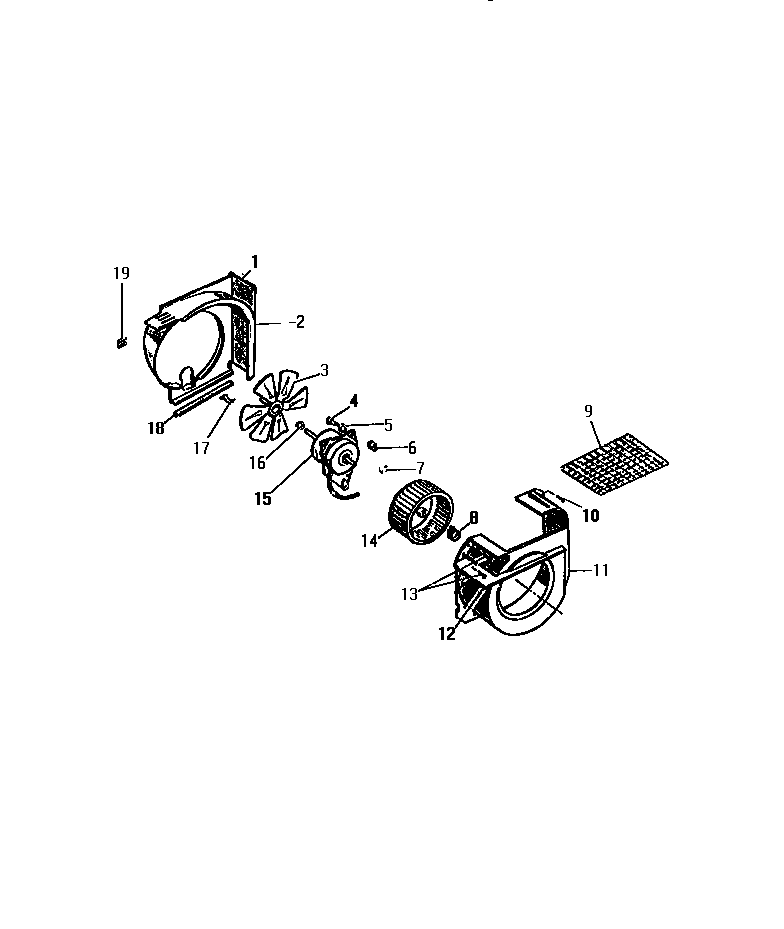

A8MECUSC3 18 – SHROUD, SCROLL, BLOWER MOTOR (`B` C

A8MECUSC3 18 – SHROUD, SCROLL, BLOWER MOTOR (`B` C

Written by

in

A8MECUSC3 18 – SHROUD, SCROLL, BLOWER MOTOR (`B` C

Products

PositionProduct
1WCI 8006543
1SEAL-TOP
2SHROUD
2WCI 8006455
3BLADE-FAN
3WCI 8006458
4SCREW
4SCREW-MOUNTING (3)
5WASHER-MTR
6WCI 8006481
7NUT
8CLAMP-BLOWER WHEEL
9WCI 8012970
11SCROLL
11SCROLL
12WCI 8003002
12WCI 8013054
13SCREW-SCROLL
14WHEEL, BLOWER
14WCI 8013065
15WCI 8014104
15WCI 8013021
15WCI 8014115
16WCI 8007680
17WCI 8006457
18SEAL
18WCI 8006456
19WCI 8006454
