A8RXCGFXS00 01 – CABINET PARTS – Aparts

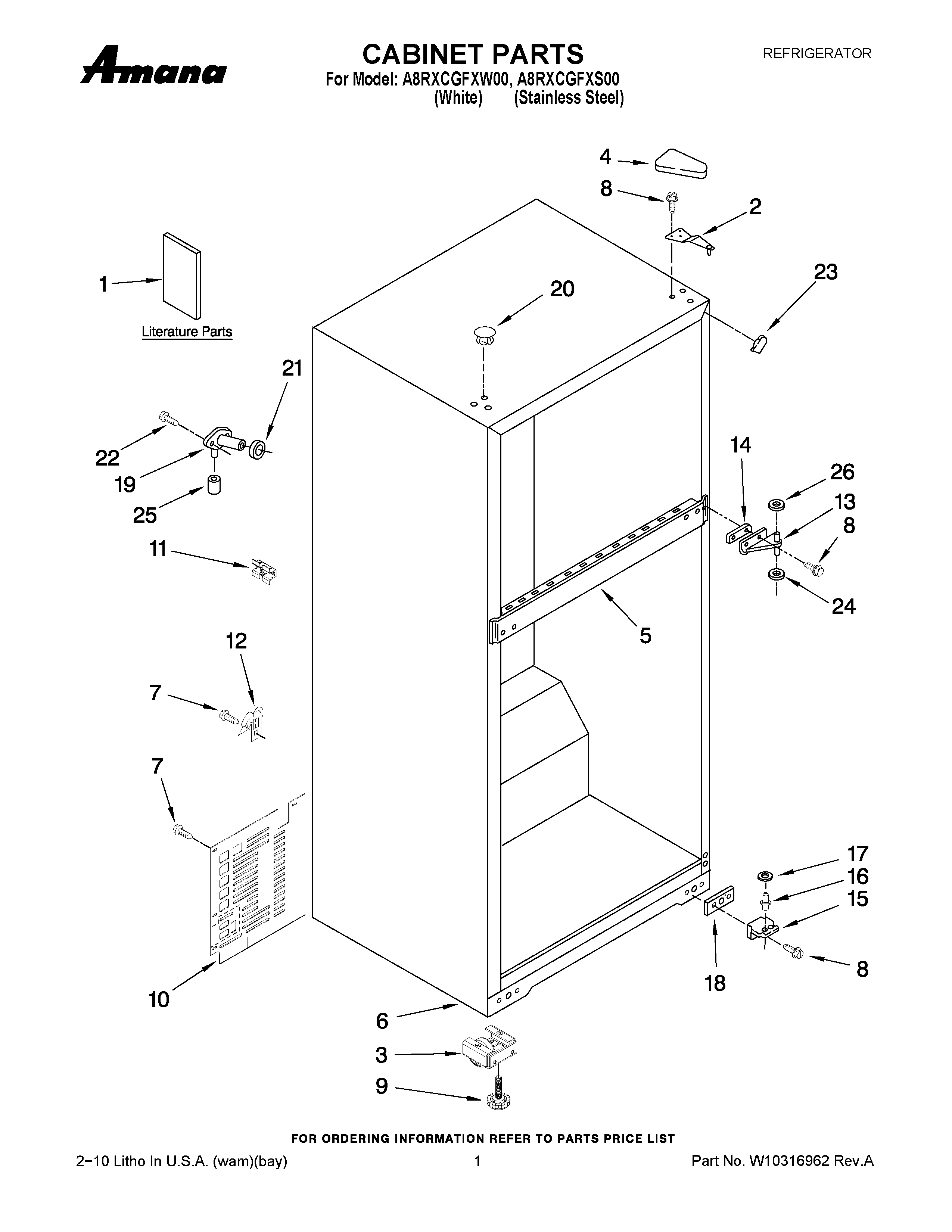

A8RXCGFXS00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2265591
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10214129
1	MAY W10246052
2	MAY 2261963
3	ROLLER, FRONT
4	Cover, Hinge (White)
4	MAY 2213363
6	LINER (NOT A SERVICEABLE PART)
7	MAY 489442
8	MAY 489497
9	LEVELER SCREW
10	MAY 2264132
11	SPACER, BACK CB
12	MAY 549193
13	MAY 2166086
14	SHIM, HINGE CENTER (WHITE)
14	SHIM, CENTER HINGE (BLACK)
15	Hinge Butt, Btm
16	Hinge-Pin, Btm
18	MAY 2201567
19	MAY 2174760
20	MAY 2183998
20	HOLE PLUG
21	Seal
22	MAY 2262176
23	Corner Filler
23	Corner Filler (Black)
24	Washer (1/16)
25	CAP BUSHING
26	WASHER, PLASTIC
