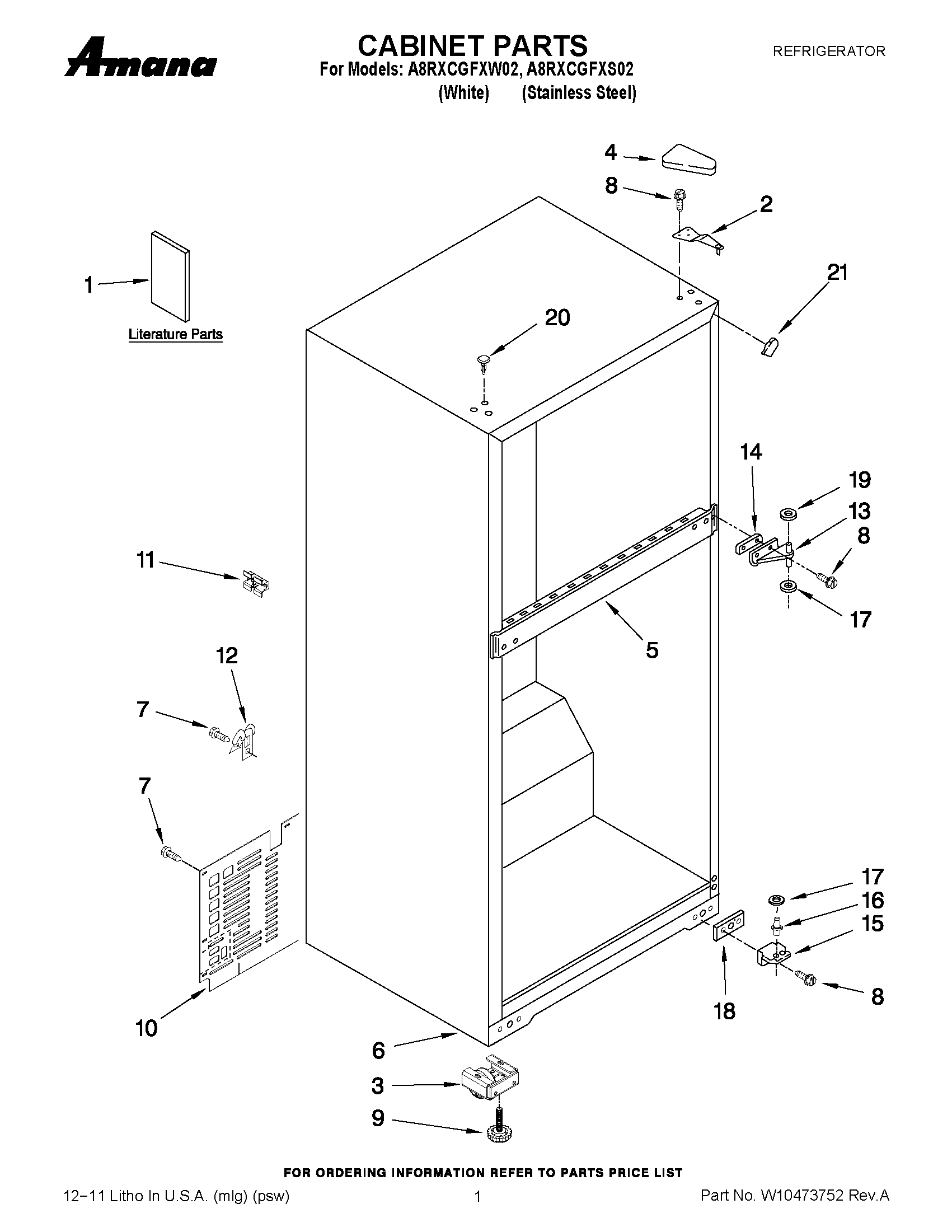

A8RXCGFXS02 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1MAY W10267756
1MAY W10214129
1MAY W10402929
2MAY 2261963
3ROLLER, FRONT
4Cover, Hinge (White)
4MAY 2213363
6LINER (NOT A SERVICEABLE PART)
7MAY 489442
8MAY 489497
9LEVELER SCREW
10MAY 2264132
11SPACER, BACK CB
12MAY 549193
13MAY 2166086
14SHIM, CENTER HINGE (BLACK)
14SHIM, HINGE CENTER (WHITE)
15Hinge Butt, Btm
16Hinge-Pin, Btm
17Washer (1/16)
18MAY 2201567
19WASHER, PLASTIC
20MAY 2183998
20HOLE PLUG
21Corner Filler (Black)
21Corner Filler
