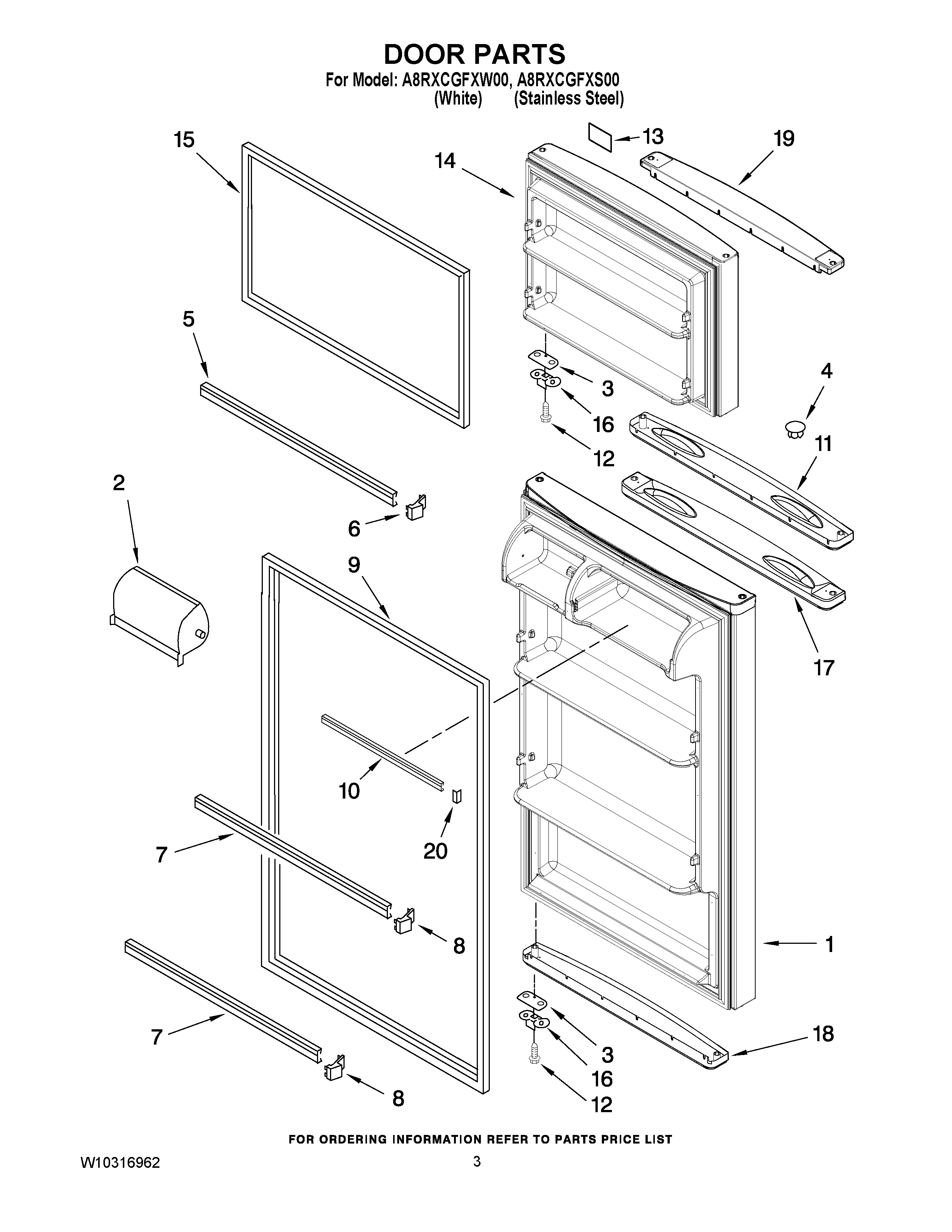

A8RXCGFXW00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 9& MOLDED HANDLE) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ITEM 9& MOLDED HANDLE) (STAINLESS)
2	MAY 2207942
3	Shim, Door Stop (White)
3	Shim, Door Stop (Black)
4	MAY 2212648
4	Hole Plug (Black)
5	MAY 2266727
6	END CAP, TRIM
7	MAY 2266738
8	PLUG-TRIM
9	GASKET, RC (BLACK)
9	DOOR GASKET, MAGNETIC
10	Trim, Door
11	MAY W10267747
11	PLUG, TRIM (WHITE)
12	MAY 8533904
13	NAMEPLATE (SILVER)
14	FREEZER DOOR (INCLUDES ITEM 15 MOLDED HANDLE) DOOR HANDLE) (WHITE)
14	FREEZER DOOR (INCLUDES ITEM 15 MOLDED HANDLE) DOOR HANDLE) (STAINLESS)
15	GASKET, FC (BLACK)
15	Door Gasket, Magnetic
16	MAY 2189202
17	Endcap, Handle (Black)
17	Endcap, Handle (White)
18	ENDCAP, BOTTOM (WHITE)
18	MAY W10267749
19	Endcap, Top (White)
19	Endcap, Top (Black)
20	Plug-Trim
