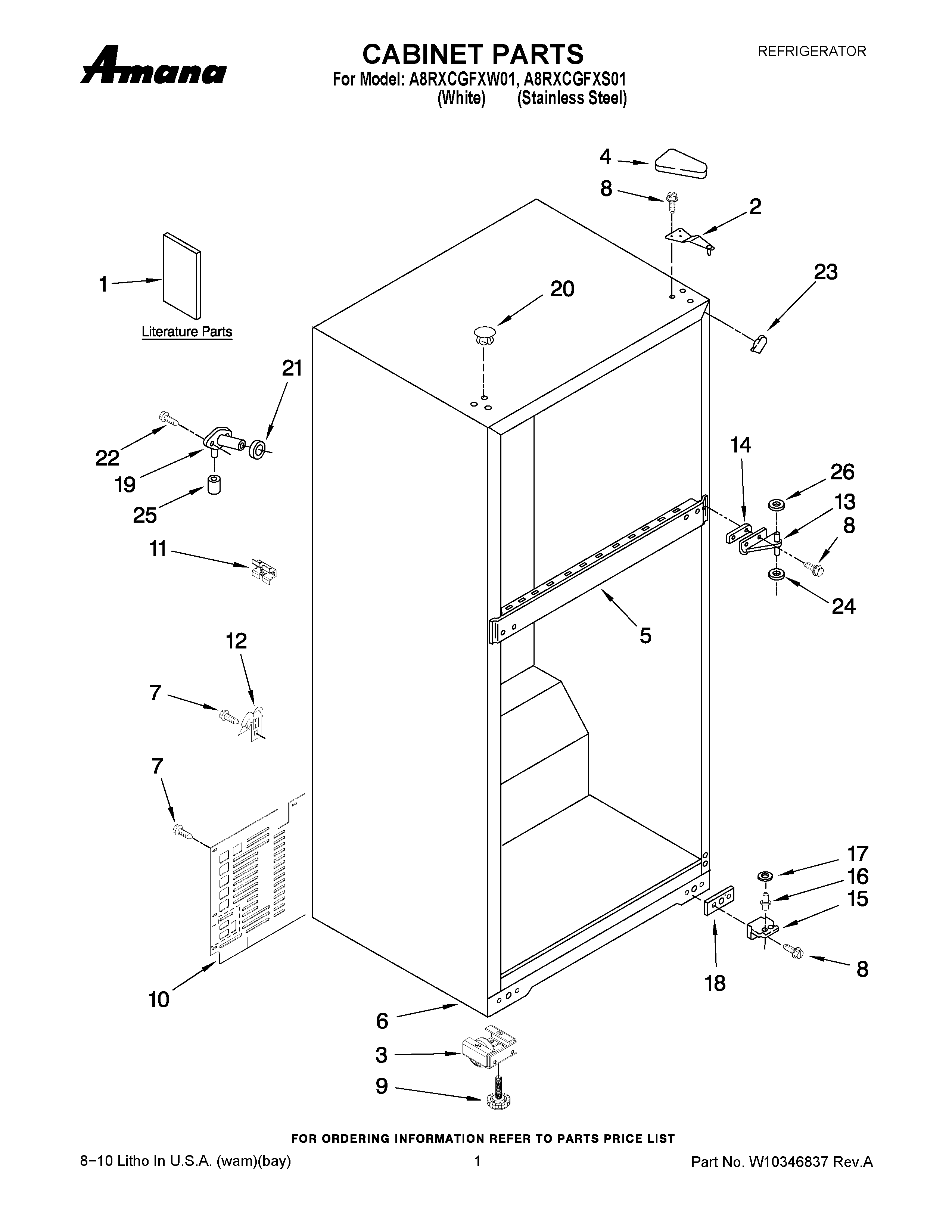

A8RXCGFXW01 01 – CABINET PARTS

A8RXCGFXW01 01 – CABINET PARTS

Written by

in

A8RXCGFXW01 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1MAY W10283801
1MAY W10267756
1MAY W10214129
2MAY 2261963
3ROLLER, FRONT
4Cover, Hinge (White)
4MAY 2213363
6LINER (NOT A SERVICEABLE PART)
7MAY 489442
8MAY 489497
9LEVELER SCREW
10MAY 2264132
11SPACER, BACK CB
12MAY 549193
13MAY 2166086
14SHIM, HINGE CENTER (WHITE)
14SHIM, CENTER HINGE (BLACK)
15Hinge Butt, Btm
16Hinge-Pin, Btm
18MAY 2201567
19MAY 2174760
20MAY 2183998
20HOLE PLUG
21Seal
22MAY 2262176
23Corner Filler
23Corner Filler (Black)
24Washer (1/16)
25CAP BUSHING
26WASHER, PLASTIC
