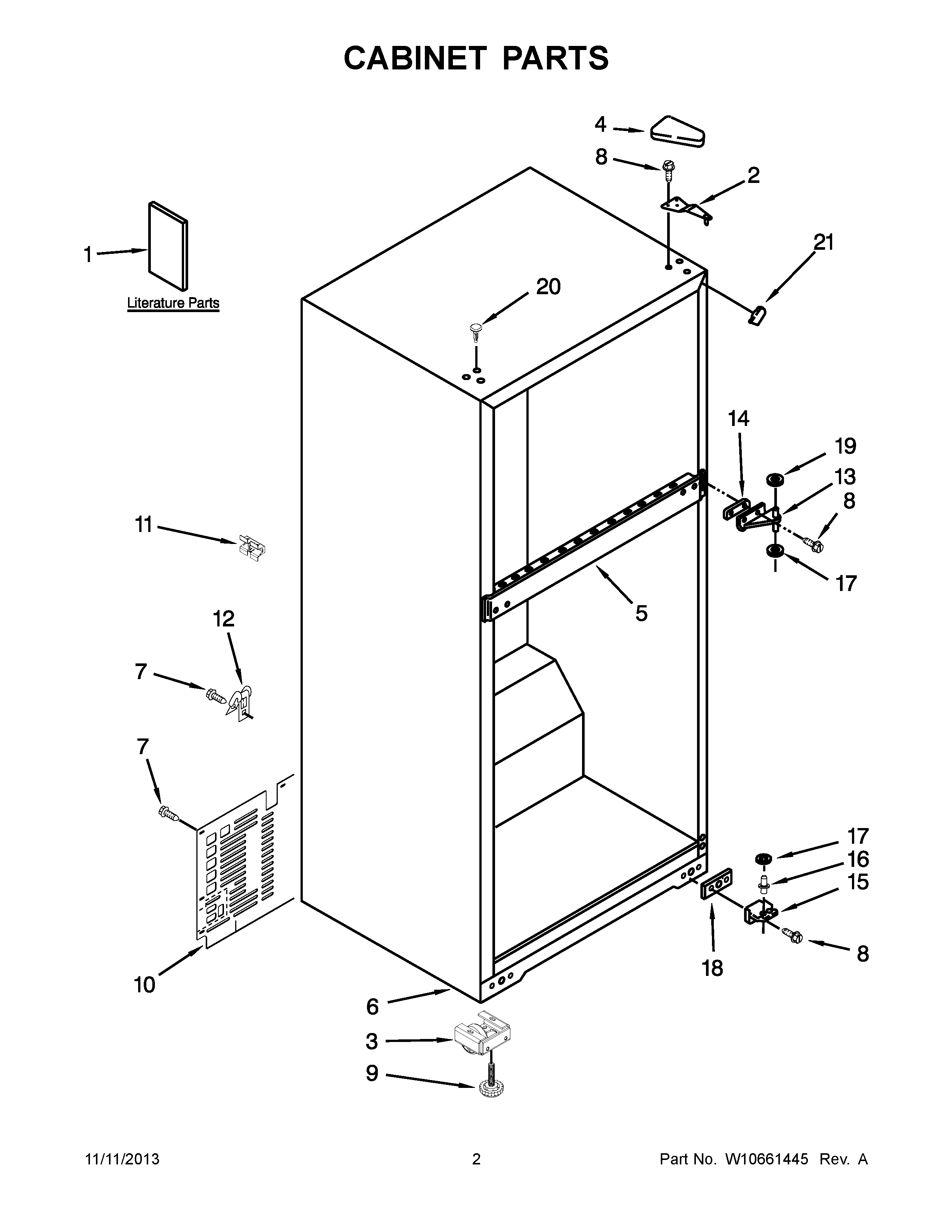

A8RXCGFXW03 02 – CABINET PARTS

A8RXCGFXW03 02 – CABINET PARTS

Written by

in

A8RXCGFXW03 02 – CABINET PARTS

Products

PositionProduct
1MAY W10267756
1MAY W10402929
1MAY W10214129
2MAY 2261963
3ROLLER, FRONT
4Cover, Hinge (White)
6LINER (NOT A SERVICEABLE PART)
7MAY 489442
8MAY 489497
9LEVELER SCREW
10MAY W10570558
11SPACER, BACK CB
12MAY 549193
13MAY 2166086
14SHIM, HINGE CENTER (WHITE)
15Hinge Butt, Btm
16Hinge-Pin, Btm
17Washer (1/16)
18MAY 2201567
19WASHER, PLASTIC
20MAY W10520304
21Corner Filler
