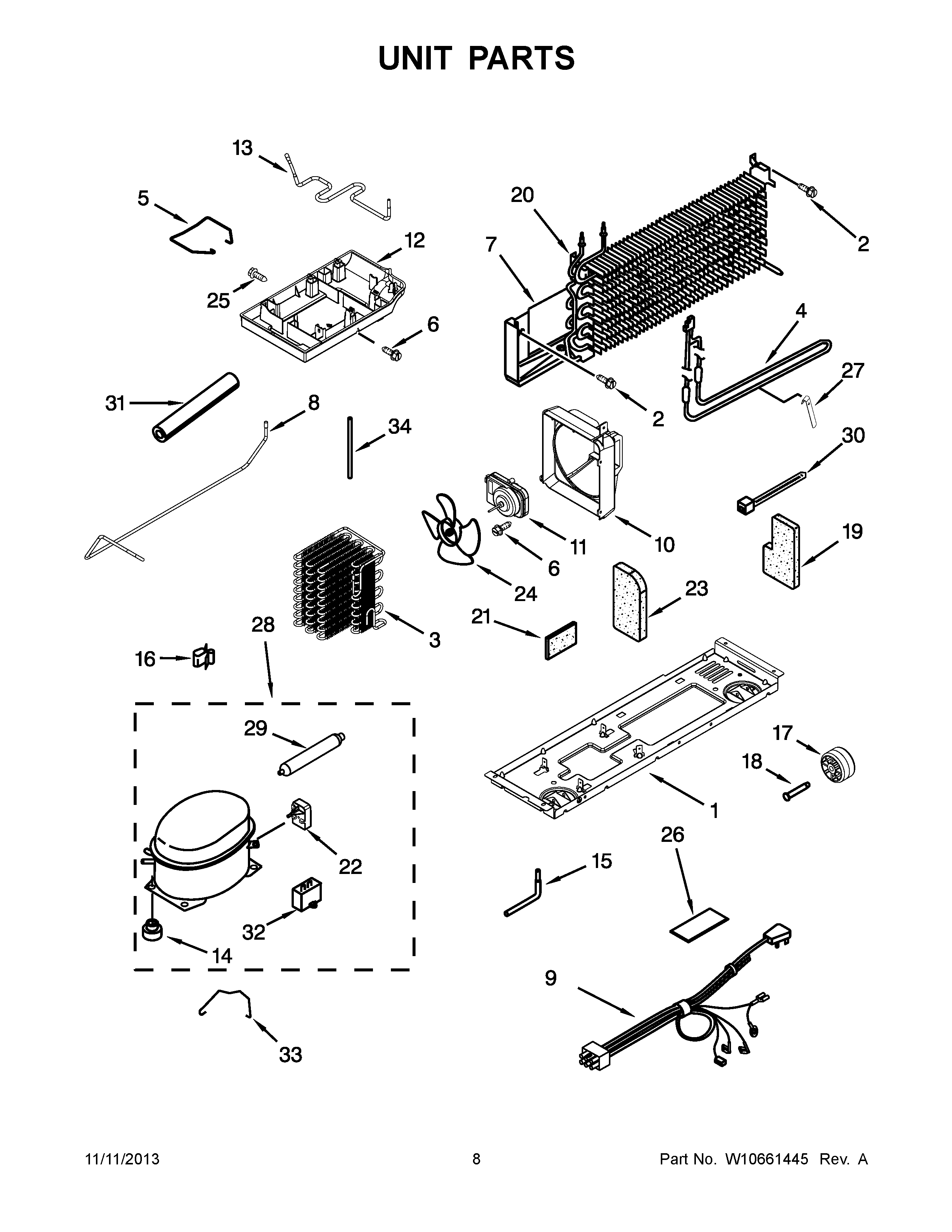

A8RXCGFXW03 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10573847
2	MAY 489442
3	MAY W10487115
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	MAY W10585747
9	MAY W10488462
10	MAY W10570380
11	MAY 2188875
12	MAY W10565417
13	MAY W10585741
14	Grommet (Production)
15	MAY VS20001
16	MAY 939054
17	MAY W10475495
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY 2215468
22	START DEVICE,
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	MAY 2258429
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
30	MAY 2263990
31	MAY 2264838
32	CAPACITOR
33	STRAP, BALE
34	MAY W10582029
