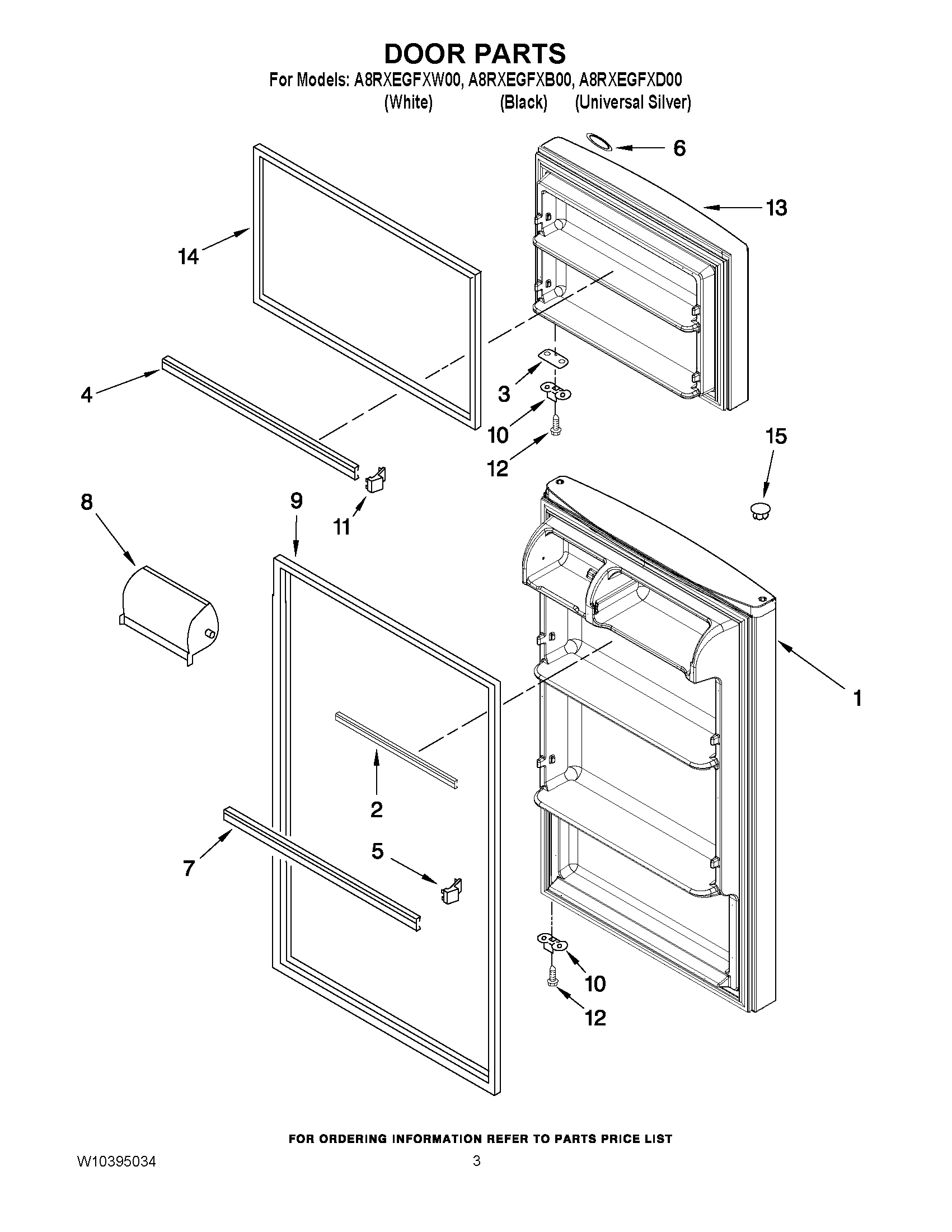

A8RXEGFXD00 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
2MAY W10234242
3Shim, Door Stop (White)
3Shim, Door Stop (Black)
4MAY 2266727
6NAMEPLATE (SILVER)
7MAY 2266738
8MAY 2207942
9GASKET, RC (BLACK)
9DOOR GASKET, MAGNETIC
9DOOR GASKET, MAGNETIC
10MAY 2189202
11END CAP, TRIM
12MAY 8533904
13FREEZER DOOR (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
13FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
13FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (BLACK)
14GASKET, FC (BLACK)
14DOOR GASKET, MAGNETIC
14Door Gasket, Magnetic
15Hole Plug (Black)
15MAY 2212648D
15MAY 2212648
