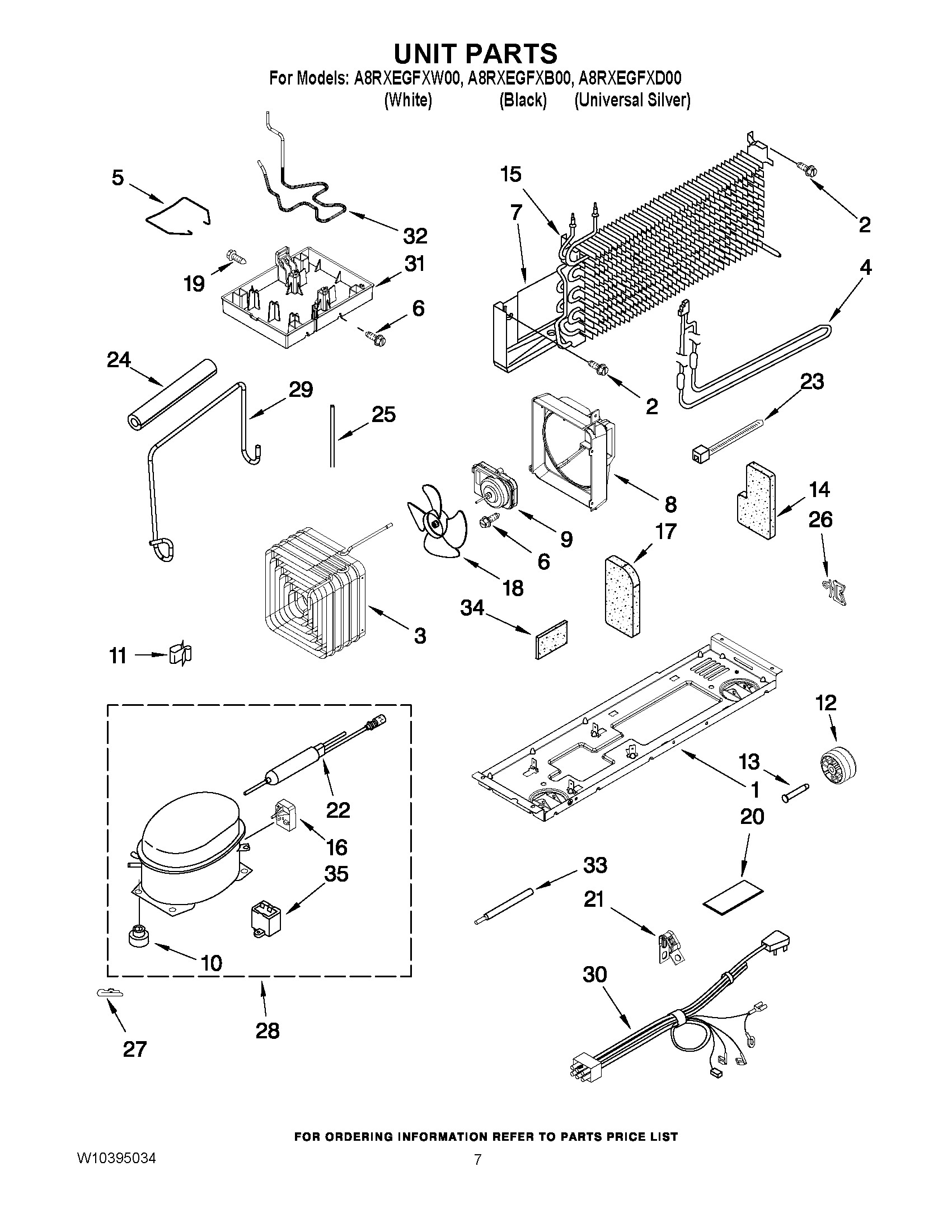

A8RXEGFXD00 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10222450
2	MAY 489442
3	MAY 2264597
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	AIR BAFFLE
9	MOTOR, CONDENSOR
10	GROMMET (SERVICE)
10	Grommet (Production)
11	MAY 939054
12	Roller
13	RIVET, AXLE
14	Wedge-Evap.
15	EVAPORATOR ASSY
16	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
16	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
17	MAY 2262192
18	MAY 2264129
19	MAY 2264841
20	SHIELD-ELECTRICAL
21	MAY 549193
22	Drier
22	DRIER (PRODUCTION)
23	MAY 2263990
24	MAY 2264838
25	MAY 2264278
26	CLIP-HARNESS
27	MAY 24364001
28	COMPRESSOR (INCLUDES ITEMS 10, 16, 22 & 35)
29	MAY W10209727
30	Wire Assy. Unit
31	Evaporating Tray
32	TUBE, DISCHARGE (INCL. PRE-COOLER)
33	PROCESS TUBE
34	MAY 2215468
35	Capacitator (Production)
