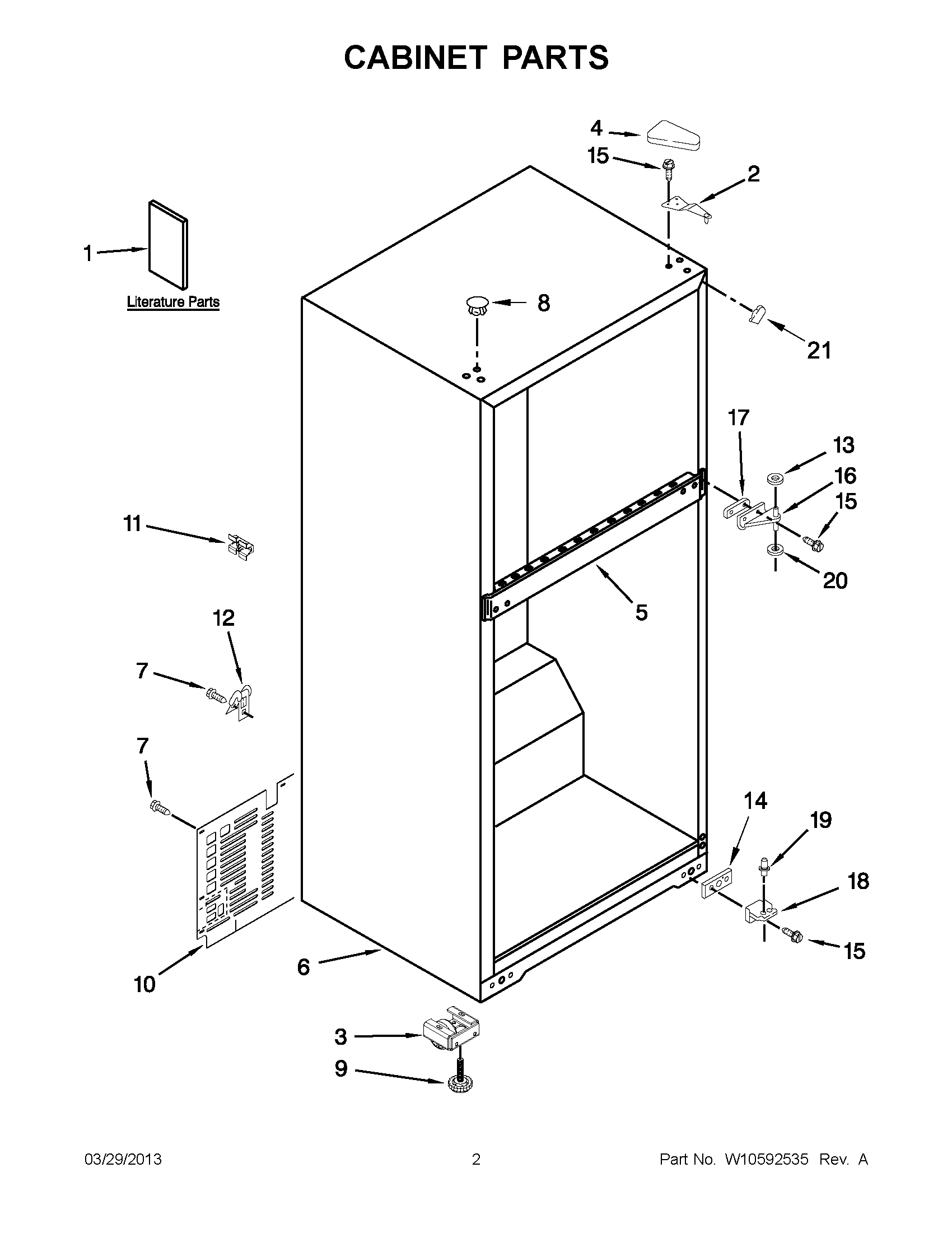

A8RXNGFBS01 01 – CABINET PARTS

A8RXNGFBS01 01 – CABINET PARTS

Written by

in

A8RXNGFBS01 01 – CABINET PARTS

Products

PositionProduct
1MAY W10402929
1MAY W10564384
1MAY W10214129
1DO-IT-YOURSELF MANUAL REF./ FRZ.
2MAY 2261963
3ROLLER, FRONT
4MAY 2213363
6LINER (NOT A SERVICEABLE PART)
7MAY 489442
8HOLE PLUG (BLACK)
9LEVELER SCREW
10MAY 2264132
11SPACER, BACK CB
12MAY 549193
13Washer (1/16)
14MAY 2201567
15MAY 489497
16MAY 2166086
17SHIM, CENTER HINGE (BLACK)
18Hinge Butt, Btm
19Hinge-Pin, Btm
20Washer (7/64)
21Corner Filler (Black)
