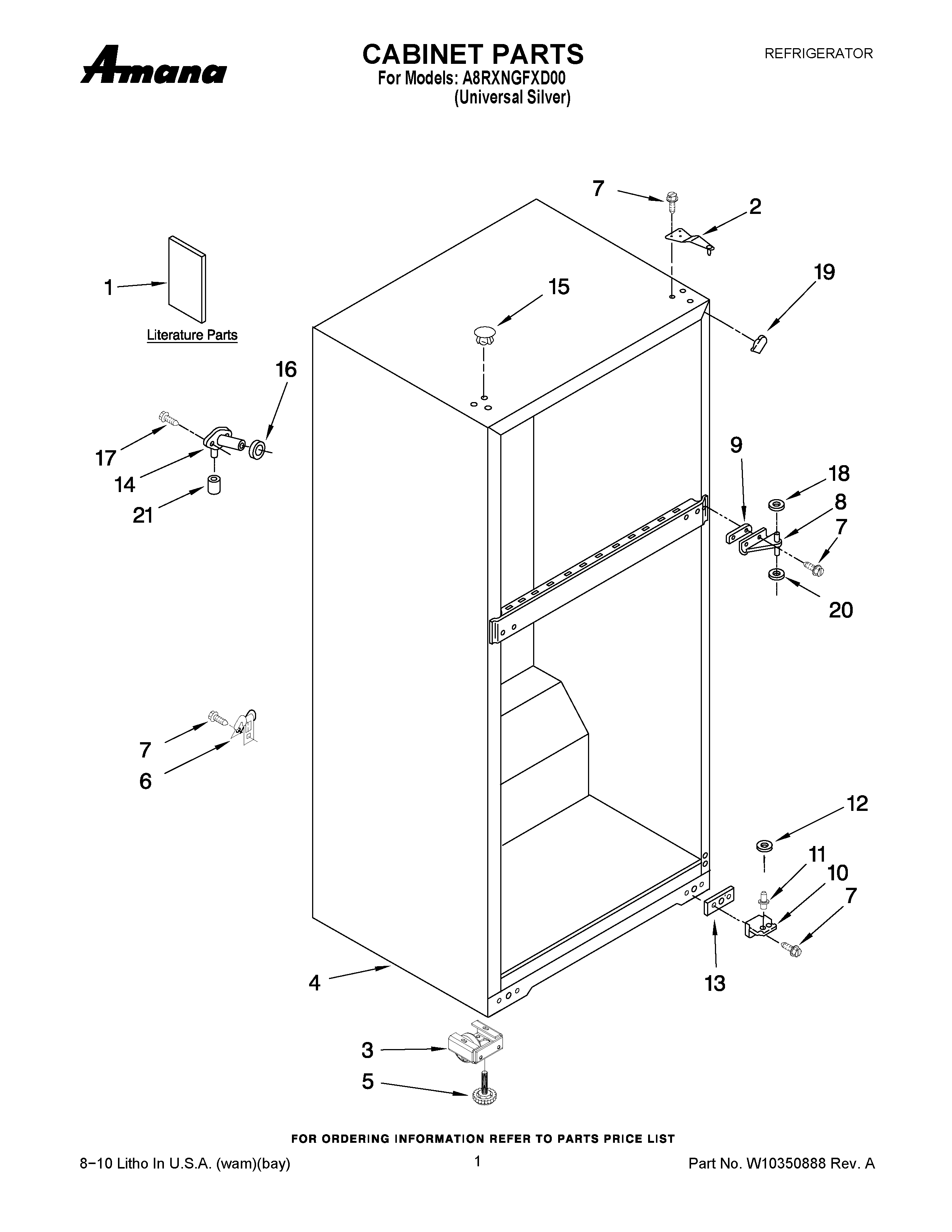

A8RXNGFXD00 01 – CABINET PARTS – Aparts

A8RXNGFXD00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10287917
1	MAY W10214129
1	MAY W10283801
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	ROLLER, FRONT
4	LINER (NOT A SERVICEABLE PART)
5	LEVELER SCREW
6	MAY 549193
7	MAY 489497
8	MAY 2166086
9	SHIM, CENTER HINGE (BLACK)
10	Hinge Butt, Btm
11	Hinge-Pin, Btm
13	MAY 2201567
14	MAY 2174760
15	MAY 2183998
16	Seal
17	MAY 2262176
18	Washer (7/64)
19	Corner Filler (Black)
20	Washer (1/16)
21	CAP BUSHING
