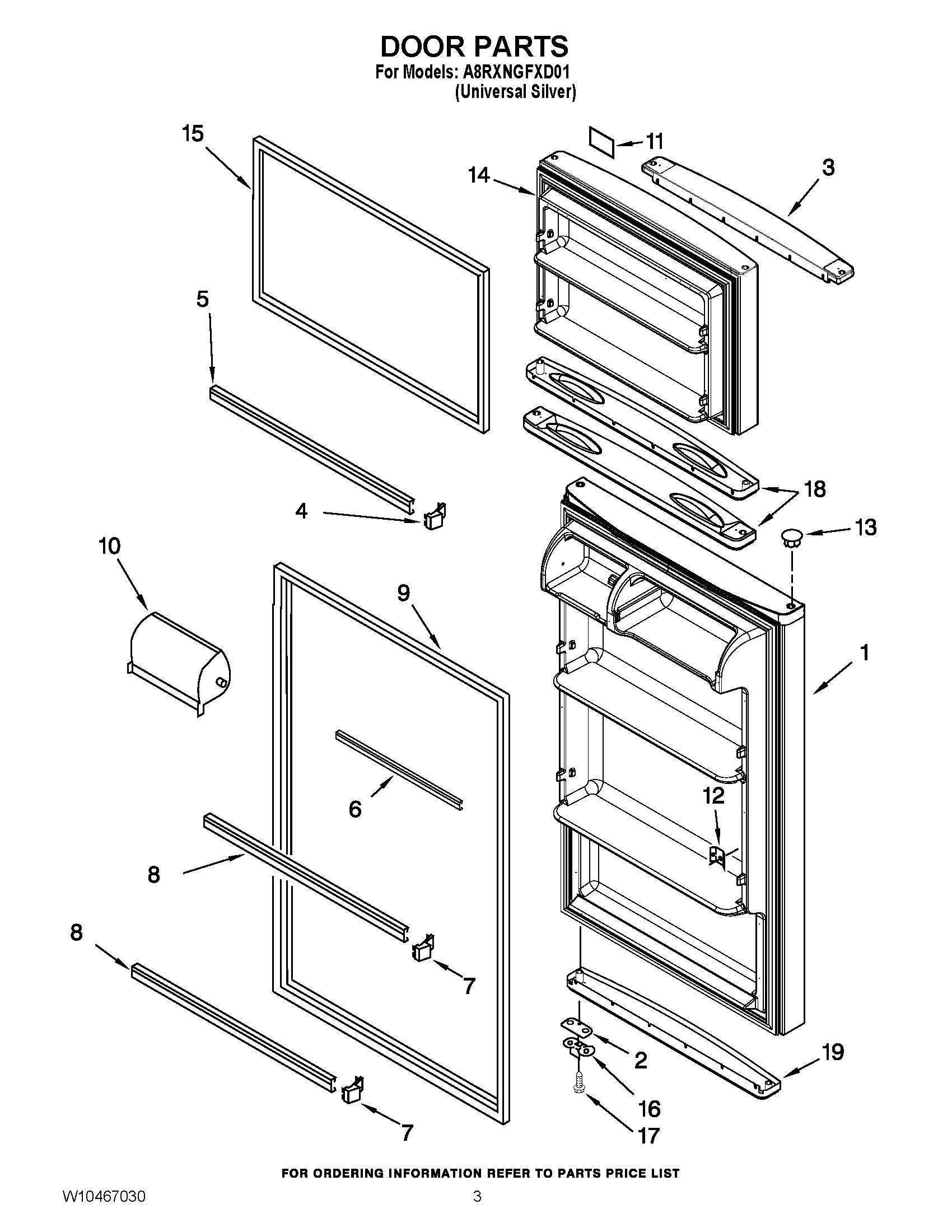

A8RXNGFXD01 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
2	Shim, Door Stop (Black)
3	Endcap, Top (Black)
4	END CAP, TRIM
5	MAY 2266727
6	MAY W10234242
7	PLUG-TRIM
8	MAY 2266738
9	GASKET, RC (BLACK)
10	MAY 2207942
11	NAMEPLATE (SILVER)
12	SCREW ANCHOR
13	Hole Plug (Black)
14	FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
15	GASKET, FC (BLACK)
16	MAY 2189202
17	MAY 8533904
18	Endcap, Handle (Black)
19	Endcap, Bottom (Black)
