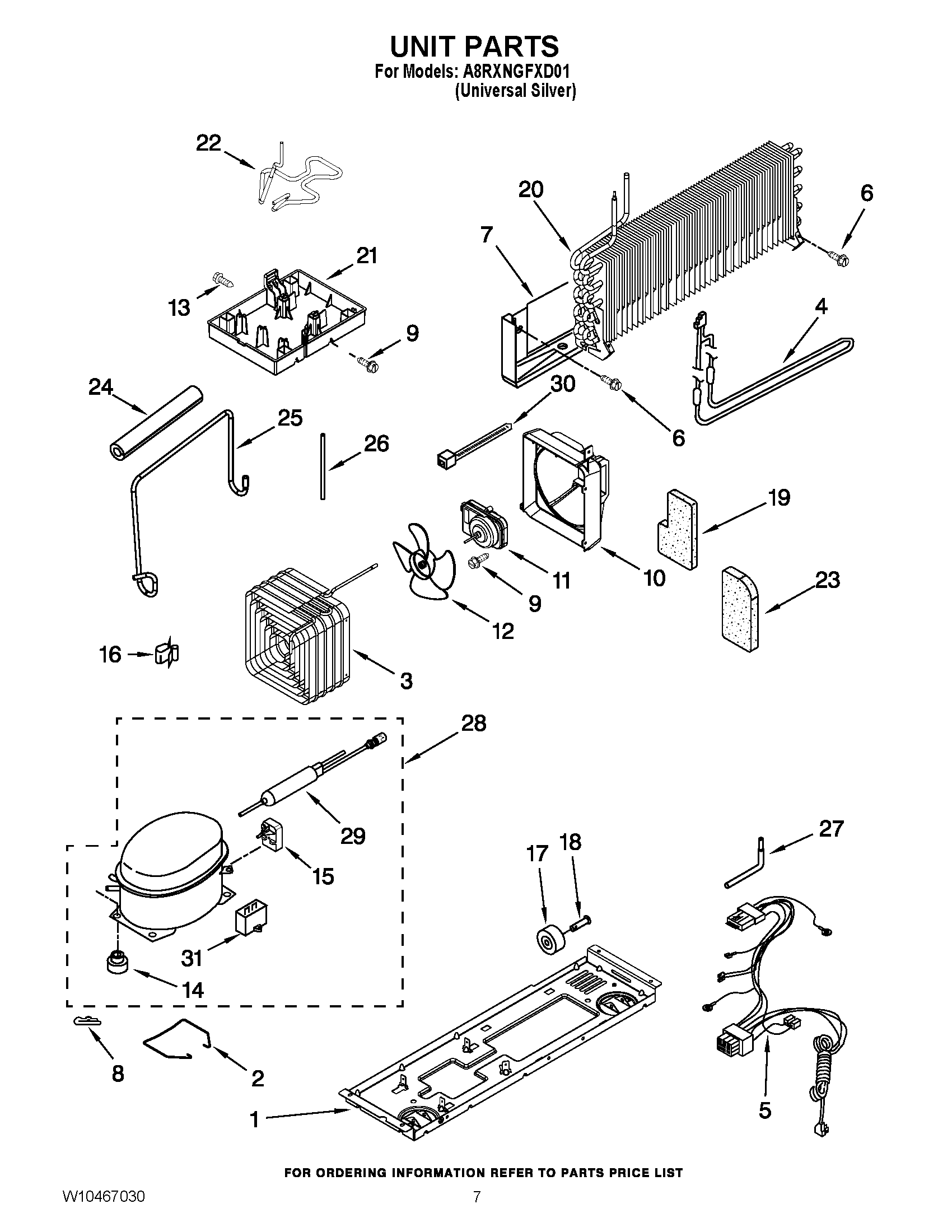

A8RXNGFXD01 04 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY W10222450
2	MAY 2264835
3	MAY 2264004
4	MAY 2176942
5	Wire Assy. Unit
6	MAY 489442
7	MAY 2319224
8	STRAP, BALE
9	MAY 8533859
10	AIR BAFFLE
11	MAY 2188875
12	MAY 2264129
13	MAY 2264841
14	Grommet (Production)
15	START DEVICE,
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	Evaporating Tray
22	TUBE, DISCHARGE (INCL. PRE-COOLER)
23	MAY 2262192
24	MAY 2264838
25	MAY W10401891
26	MAY 2264278
27	MAY VS20001
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
29	Drier
30	MAY 2263990
31	CAPACITOR
