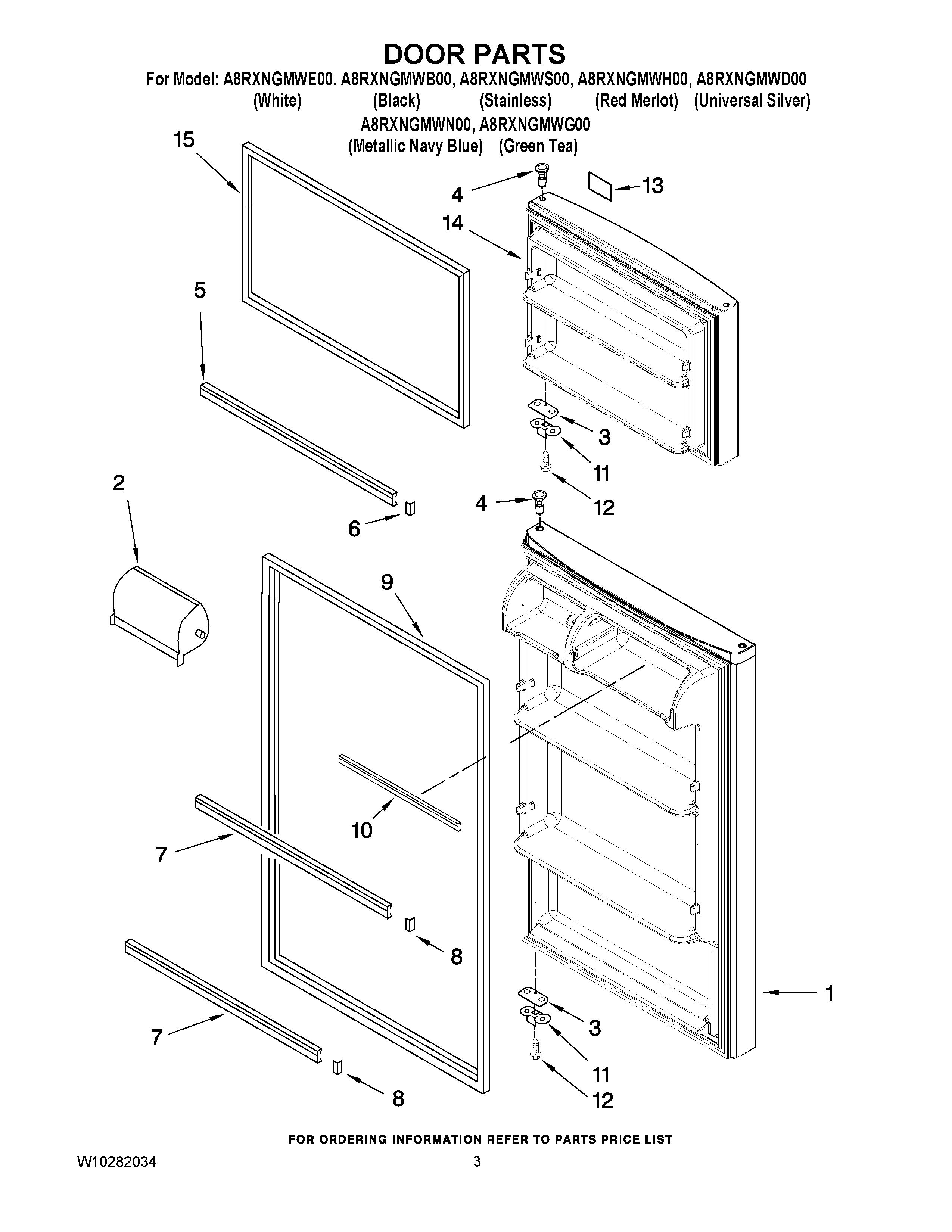

A8RXNGMWB00 02 – DOOR PARTS

A8RXNGMWB00 02 – DOOR PARTS

Written by

in

A8RXNGMWB00 02 – DOOR PARTS

Products

PositionProduct
1MAY 2265677N
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (BLACK)
1MAY W10278947
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (STAINLESS)
1MAY W10153823
1MAY 2265677R
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
2MAY 2207942
3Shim, Door Stop (White)
3Shim, Door Stop (Black)
4MAY 2212648D
4MAY 2212648
4Hole Plug (Black)
5MAY 2266727
6END CAP, TRIM
7MAY 2266738
8PLUG-TRIM
9MAY 2264727
9GASKET, RC (BLACK)
9DOOR GASKET, MAGNETIC
10MAY W10234242
11MAY 2189202
12MAY 8533904
13NAMEPLATE (SILVER)
14MAY W10278946
14MAY 2265678N
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (BLACK)
14MAY 2265678R
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
14MAY W10162670
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (STAINLESS)
15DOOR GASKET, MAGNETIC
15MAY 2264726
15GASKET, FC (BLACK)
