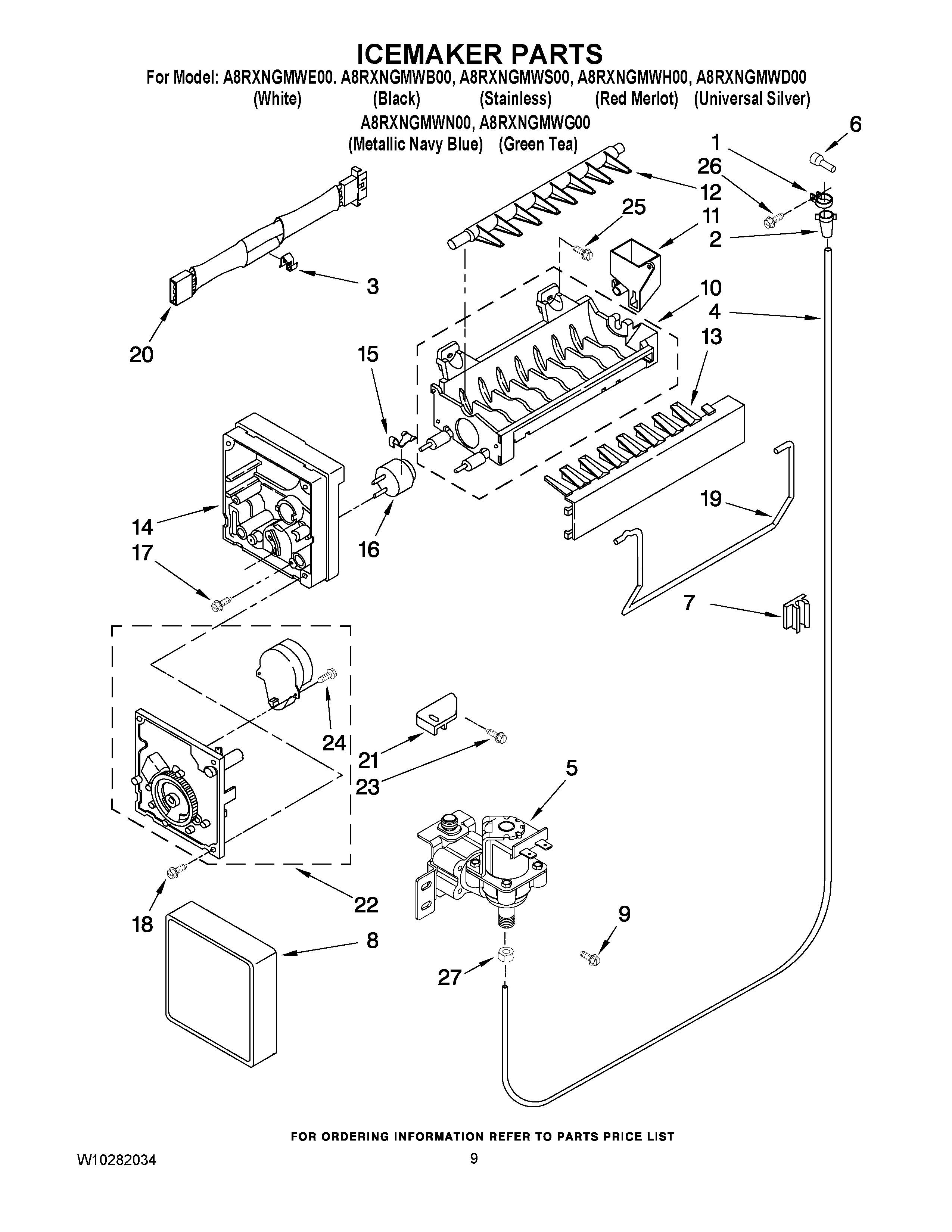

A8RXNGMWD00 05 – ICEMAKER PARTS

Products

Position	Product
1	MAY 488878
2	MAY 2181939
3	Clip
4	TUBE WATER
5	Valve Solenoid (Single)
6	MAY 2174755
7	Clip-Fill Tube
8	COVER
10	MAY W10122527
11	MAY W10122561
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	MAY 8533917
18	MAY 489276
19	MAY 627792
20	MAY 2187464
21	MAY 628320
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	MAY 489478
24	MAY 489136
25	Screw
26	MAY 489442
27	MAY 627018
100	MAY W10190952
