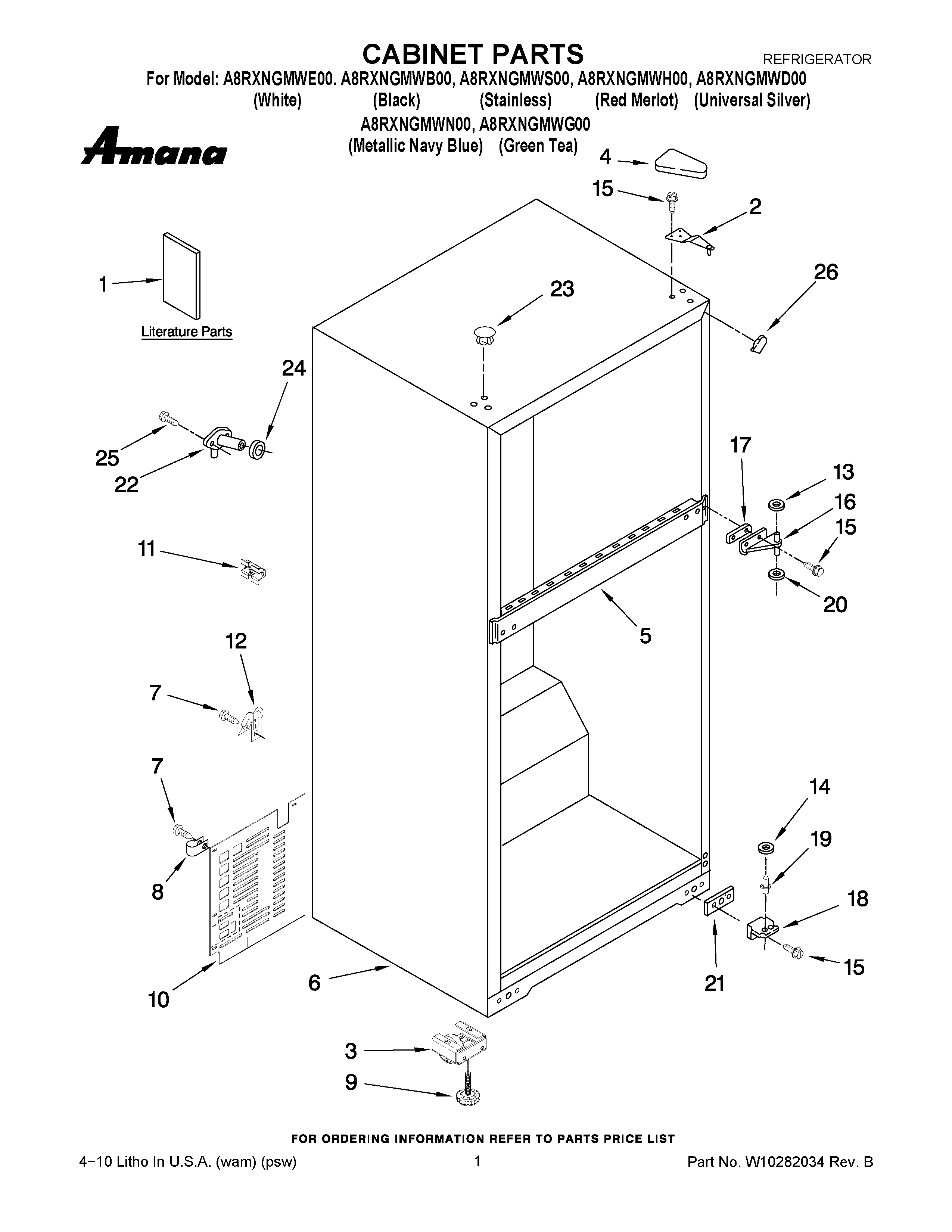

A8RXNGMWH00 01 – CABINET PARTS

A8RXNGMWH00 01 – CABINET PARTS

Written by

in

A8RXNGMWH00 01 – CABINET PARTS

Products

PositionProduct
1MAY 2265591
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1MAY 628370
1MAY W10154917
1MAY W10246052
2MAY 2261963
3ROLLER, FRONT
4Cover, Hinge (White)
4MAY 2213363
4COVER, HINGE
6LINER (NOT A SERVICEABLE PART)
7MAY 489442
8CLAMP, TUBE
9LEVELER SCREW
10MAY 2266389
11SPACER, BACK CB
12MAY 549193
13WASHER, PLASTIC
15MAY 489497
16MAY 2166086
17SHIM, HINGE CENTER (WHITE)
18Hinge Butt, Btm
19Hinge-Pin, Btm
20Washer (1/16)
21MAY 2201567
22MAY 2174760
23HOLE PLUG
23MAY 2183998
23HOLE PLUG
24Seal
25MAY 2262176
26CORNER FILLER
26Corner Filler
26Corner Filler (Black)
