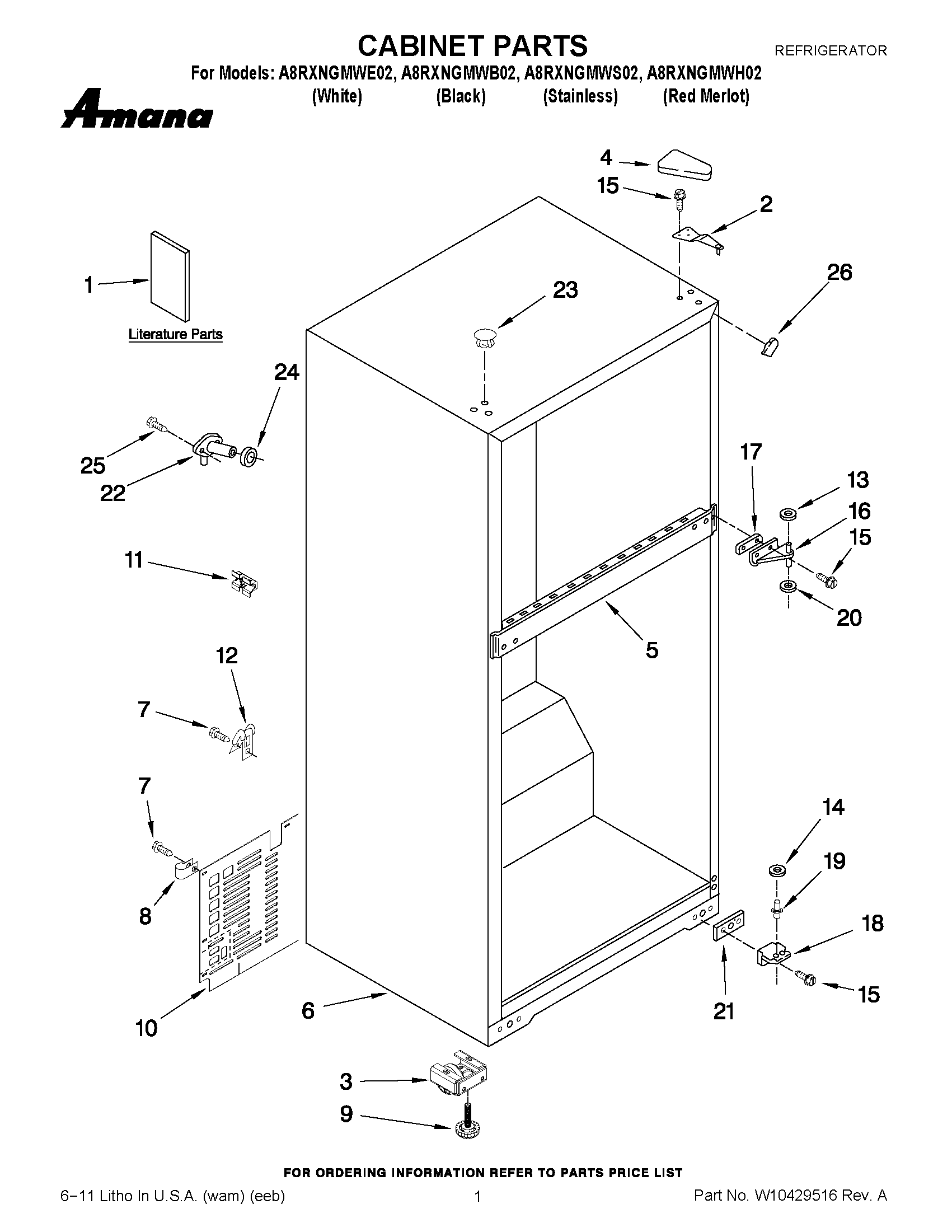

A8RXNGMWH02 01 – CABINET PARTSadmin2025-04-26T08:54:46+00:00A8RXNGMWH02 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | DO-IT-YOURSELF MANUAL REF./ FRZ. |
| 1 | MAY W10283801 |
| 1 | MAY 628370 |
| 1 | MAY W10154917 |
| 1 | MAY W10246052 |
| 2 | MAY 2261963 |
| 3 | ROLLER, FRONT |
| 4 | Cover, Hinge (White) |
| 4 | MAY 2213363 |
| 4 | COVER, HINGE |
| 6 | LINER (NOT A SERVICEABLE PART) |
| 7 | MAY 489442 |
| 8 | CLAMP, TUBE |
| 9 | LEVELER SCREW |
| 10 | MAY 2266389 |
| 11 | SPACER, BACK CB |
| 12 | MAY 549193 |
| 13 | WASHER, PLASTIC |
| 15 | MAY 489497 |
| 16 | MAY 2166086 |
| 17 | SHIM, CENTER HINGE (BLACK) |
| 17 | SHIM, HINGE CENTER (WHITE) |
| 18 | Hinge Butt, Btm |
| 19 | Hinge-Pin, Btm |
| 20 | Washer (1/16) |
| 21 | MAY 2201567 |
| 22 | MAY 2174760 |
| 23 | HOLE PLUG |
| 23 | MAY 2183998 |
| 23 | HOLE PLUG |
| 24 | Seal |
| 25 | MAY 2262176 |
| 26 | CORNER FILLER |
| 26 | Corner Filler |
| 26 | Corner Filler (Black) |
