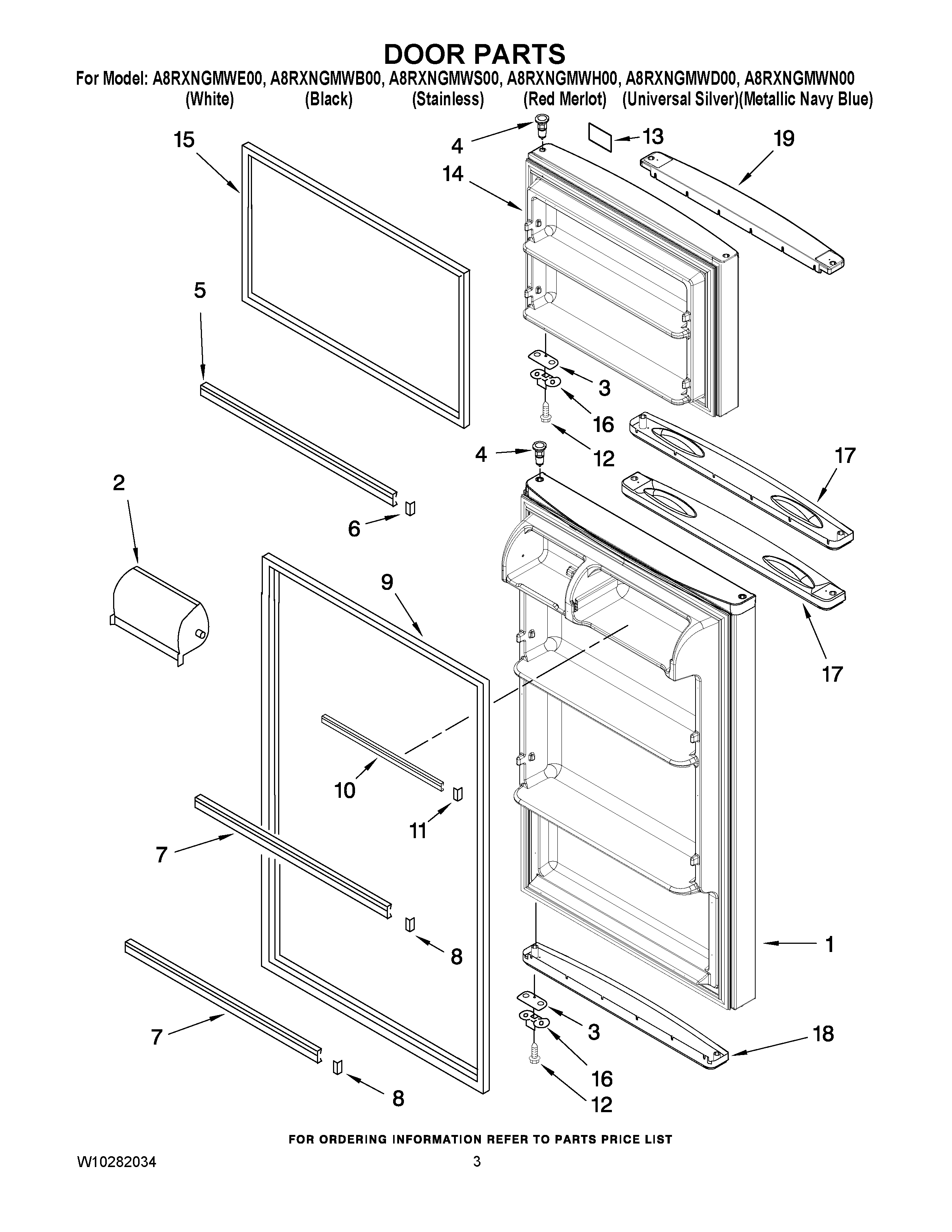

A8RXNGMWN00 02 – DOOR PARTS

Products

PositionProduct
1MAY 2265677R
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
1MAY 2265677N
1MAY W10153823
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (STAINLESS)
2MAY 2207942
3Shim, Door Stop (White)
3Shim, Door Stop (Black)
4Hole Plug (Black)
4MAY 2212648
4MAY 2212648D
5MAY 2266727
6END CAP, TRIM
7MAY 2266738
8PLUG-TRIM
9DOOR GASKET, MAGNETIC
9MAY 2264727
9GASKET, RC (BLACK)
10Trim, Door
11Plug-Trim
12MAY 8533904
13NAMEPLATE (SILVER)
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (BLACK)
14MAY W10162670
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
14MAY 2265678R
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (STAINLESS)
14MAY 2265678N
15MAY 2264726
15GASKET, FC (BLACK)
15DOOR GASKET, MAGNETIC
16MAY 2189202
17Endcap, Handle (Black)
17Endcap, Handle (White)
17Endcap, Handle (Universal Silver)
18Endcap, Bottom (White)
18Endcap, Bottom (Black)
18MAY 2265647D
19ENDCAP, TOP
19Endcap, Top (White)
19Endcap, Top (Black)
