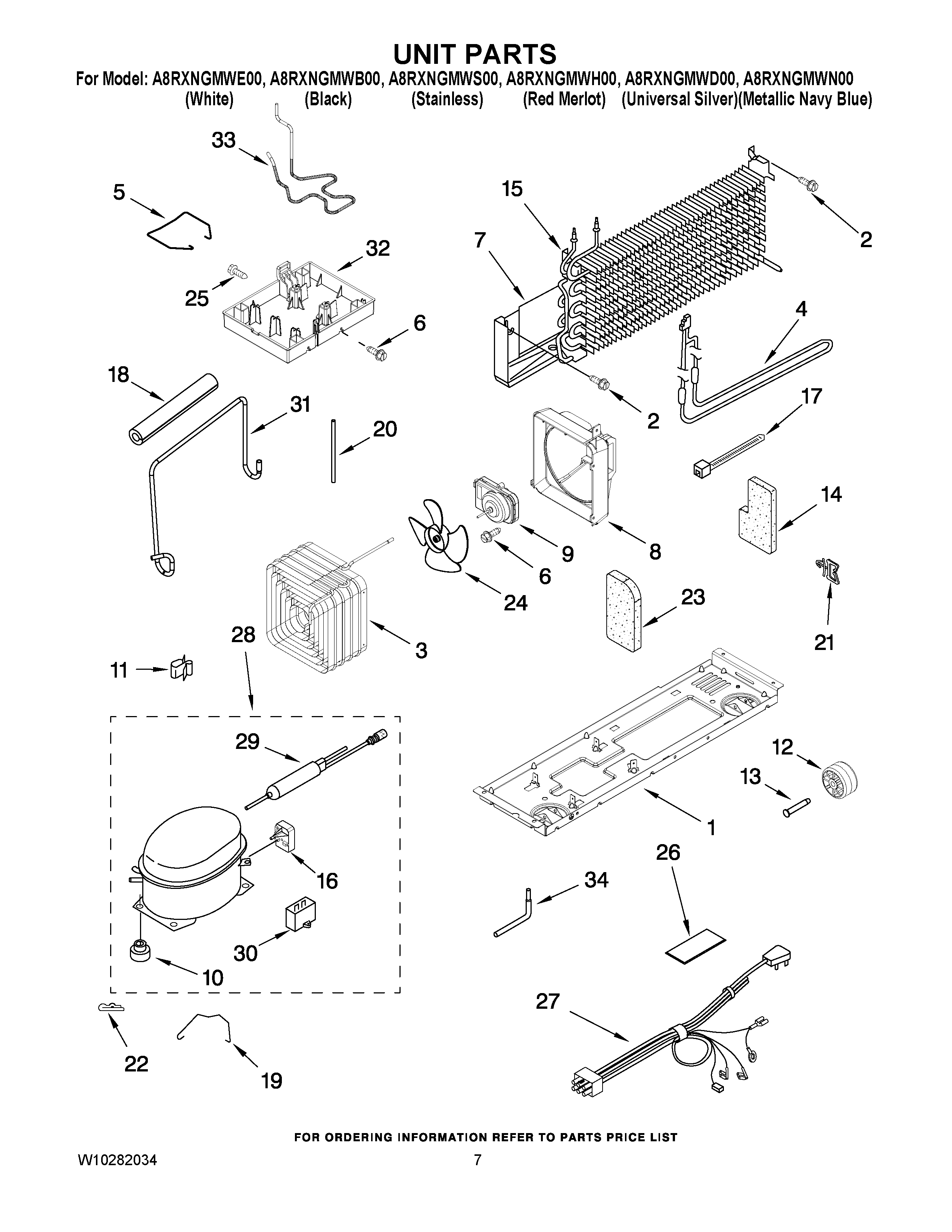

A8RXNGMWN00 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	MAY W10127456
2	MAY 489442
3	MAY 2264004
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	MAY 2263929
9	MAY 2188875
10	Grommet (Production)
11	MAY 939054
12	Roller
13	RIVET, AXLE
14	Wedge-Evap.
15	EVAPORATOR ASSY
16	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
17	MAY 2263990
18	MAY 2264838
19	STRAP, BALE
20	MAY 2264278
21	CLIP-HARNESS
22	MAY 24364001
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	Wire Assy. Unit
28	COMPRESSOR (INCLUDES ITEMS 14, 22, 29 & 32) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	MAY 2320731
29	Drier
30	CAPACITATOR (SERVICE)
30	Capacitator (Production)
31	MAY 2264131
32	Evaporating Tray
33	Tube, Discharge (Incl. Pre-Cooler)
34	MAY VS20001
