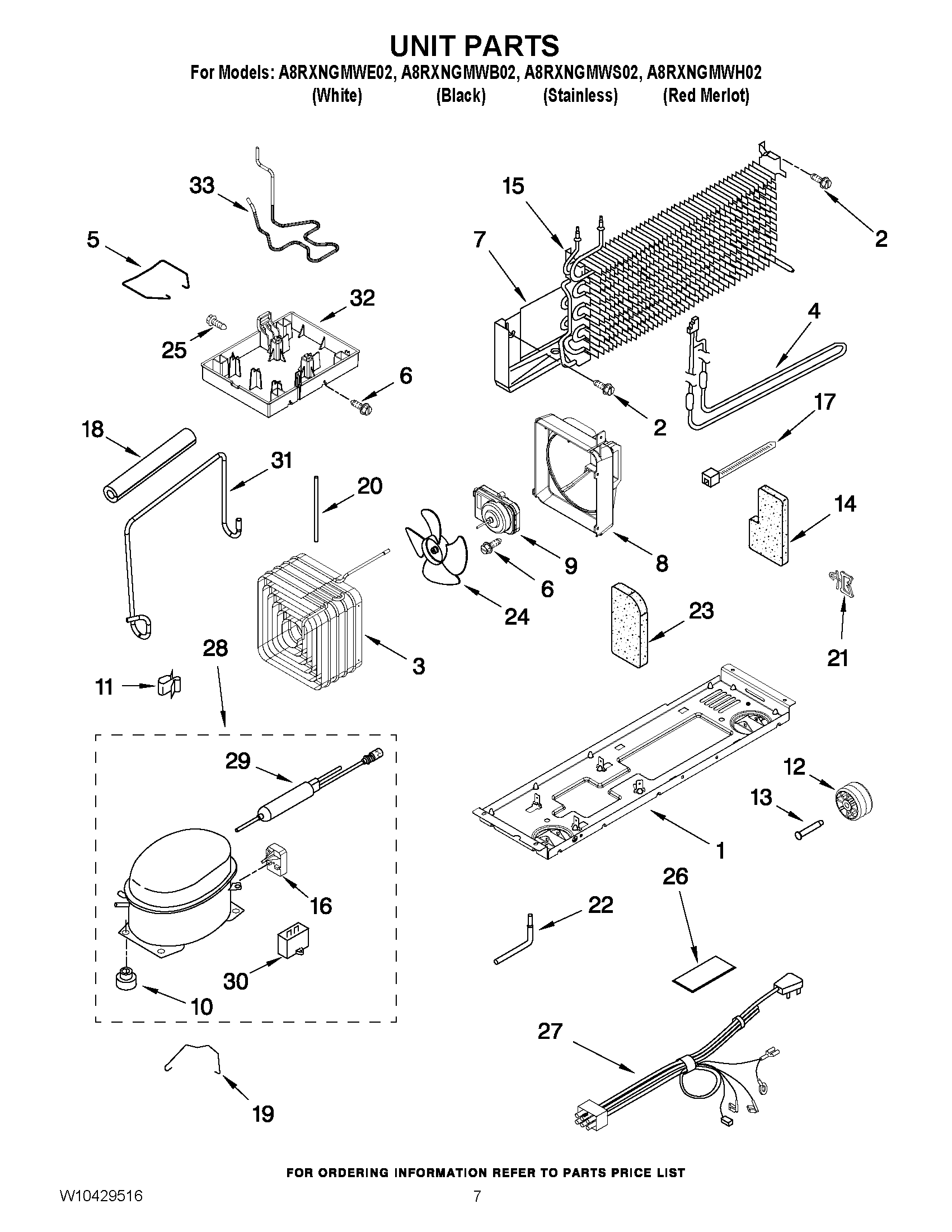

A8RXNGMWS02 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	VALVE, ACCESS (3/8``)
NI	MAY 876764
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	MAY W10222450
2	MAY 489442
3	MAY 2264004
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	AIR BAFFLE
9	MAY 2188875
10	MAY 2222084
11	MAY 939054
12	Roller
13	RIVET, AXLE
14	Wedge-Evap.
15	EVAPORATOR ASSY
16	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
16	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
17	MAY 2263990
18	MAY 2264838
19	BALE STRAP
20	MAY 2264278
21	CLIP-HARNESS
22	MAY VS20001
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	Wire Assy. Unit
28	COMPRESSOR (INCLUDES ITEMS 14, 22, 29 & 32) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	Drier
29	DRIER (PRODUCTION)
30	Capacitator (Production)
31	MAY W10209727
32	Evaporating Tray
33	TUBE, DISCHARGE (INCL.PRE COOLER)
