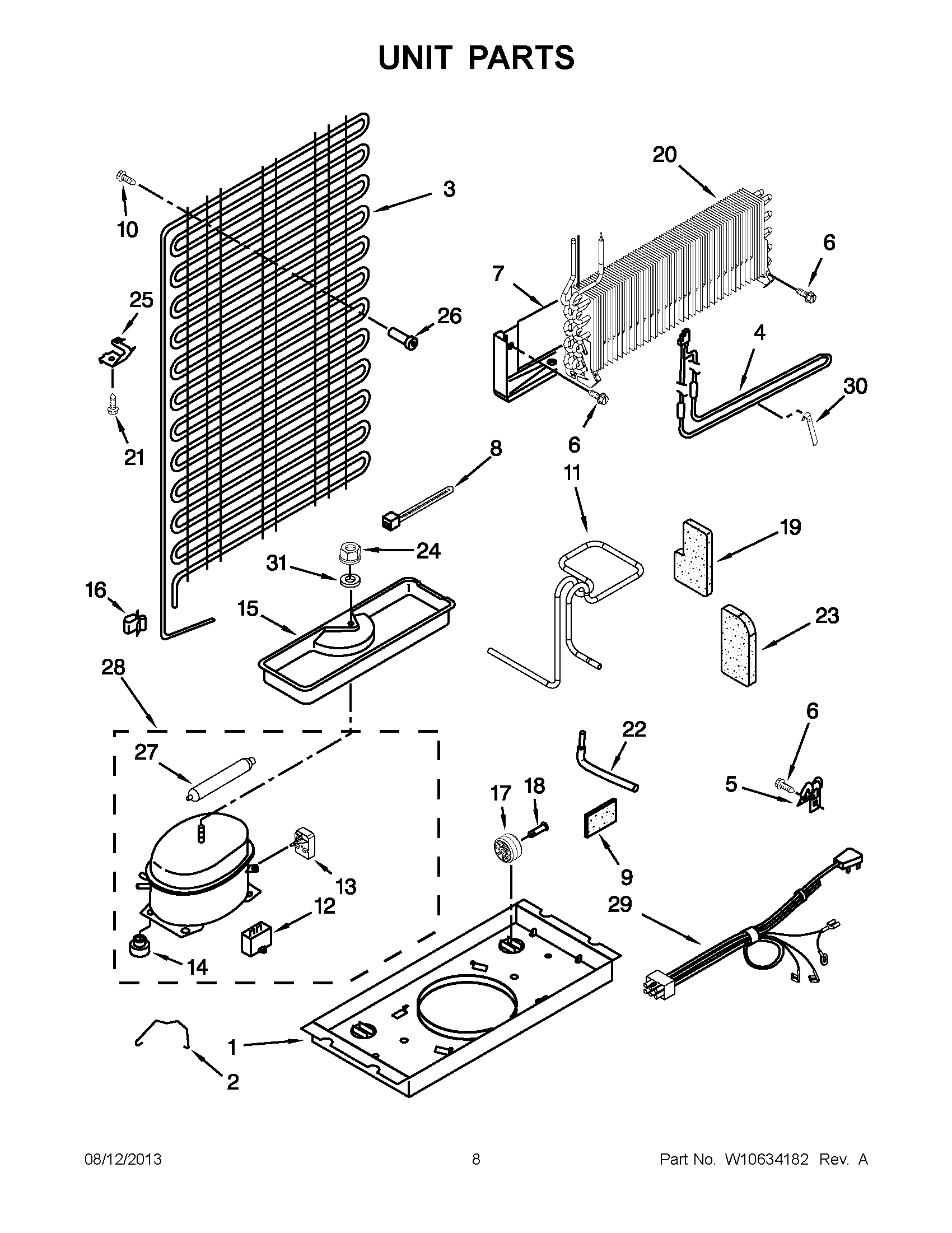

A8TCNWFAB02 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10222451
2	STRAP, BALE
3	MAY W10219349
4	MAY 2176942
5	MAY 549193
7	MAY 2319224
8	MAY 2263990
9	MAY 2215468
10	MAY 8533892
11	MAY W10442467
12	CAPACITOR
13	START DEVICE,
14	Grommet (Production)
15	TRAY, EVAPORATOR
16	MAY 939054
17	MAY W10475495
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY 489442
22	MAY VS20001
23	MAY 2262192
24	MAY 489153
25	MAY 2172892
26	MAY 2258452
27	DRIER (PRODUCTION)
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	WIRE ASSEMBLY UNIT
30	MAY 2258429
31	Washer (7/64)
