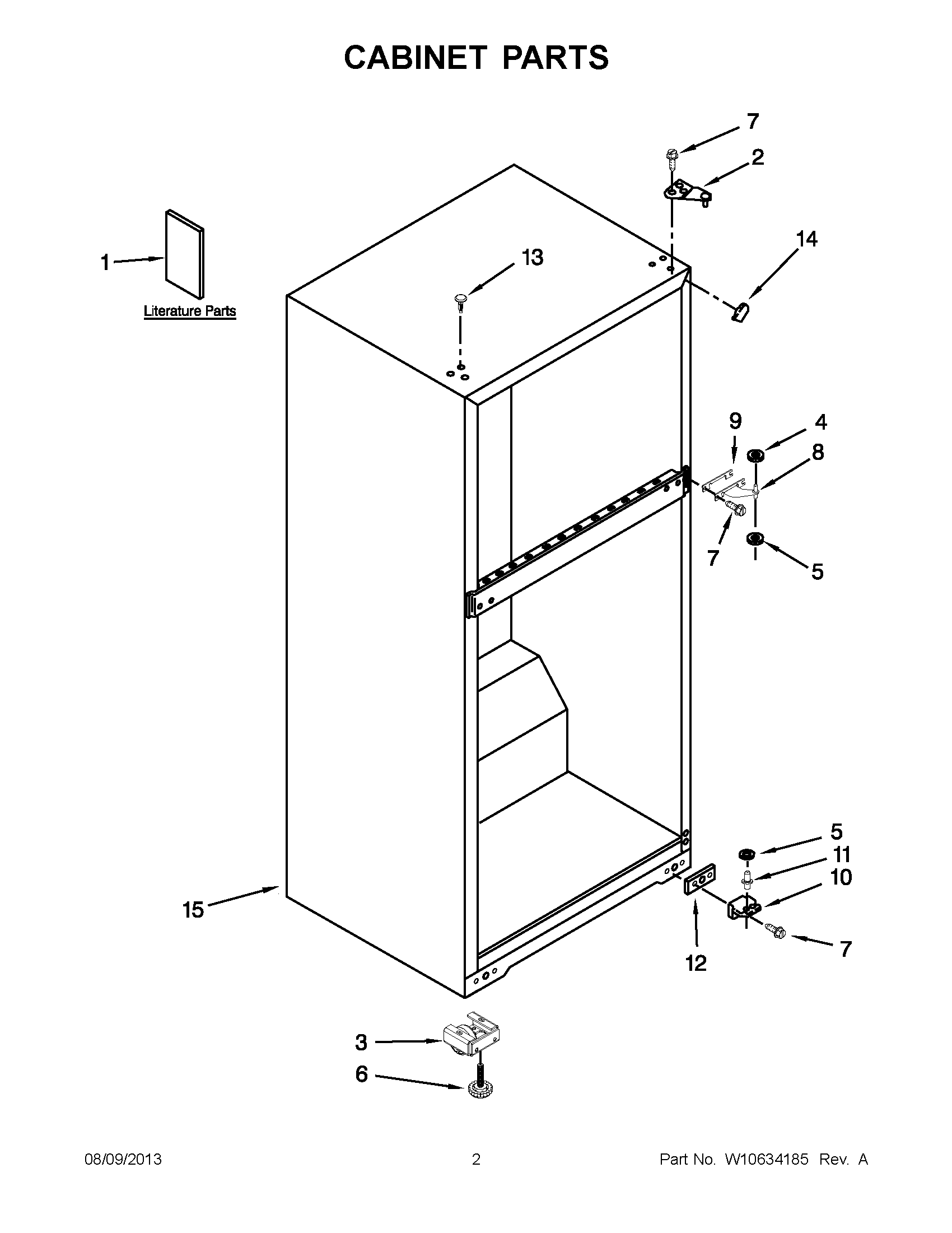

A8TCNWFAW01 01 – CABINET PARTS

A8TCNWFAW01 01 – CABINET PARTS

Written by

in

A8TCNWFAW01 01 – CABINET PARTS

Products

PositionProduct
1MAY W10214129
1MAY W10294350
1MAY W10457181
2MAY 2261963
3ROLLER, FRONT
4WASHER, PLASTIC
5Washer (1/16)
6LEVELER SCREW
7MAY 489497
8MAY 2166086
9SHIM, HINGE CENTER (WHITE)
10Hinge Butt, Btm
11Hinge-Pin, Btm
12MAY 2201567
13MAY W10520304
14Corner Filler
15LINER (NOT A SERVICEABLE PART)
