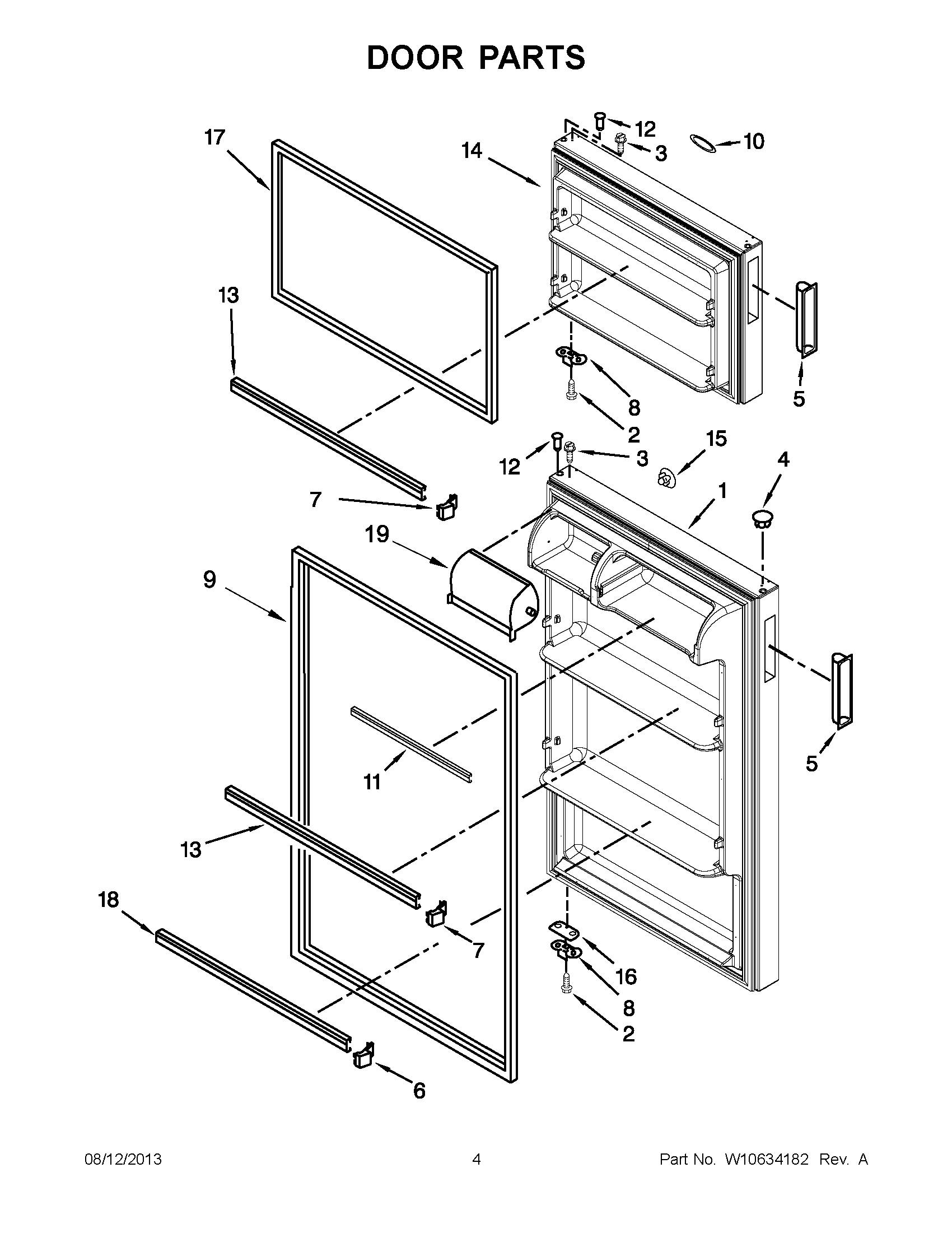

A8TCNWFAW02 02 – DOOR PARTS

A8TCNWFAW02 02 – DOOR PARTS

Written by

in

A8TCNWFAW02 02 – DOOR PARTS

Products

PositionProduct
1MAY W10595309
1MAY W10611532
2MAY 488921
3MAY 8281206
4MAY 2212648
4Hole Plug (Black)
5HANDLE, SNAP-IN
5HANDLE (BLACK)
6PLUG-TRIM
7END CAP, TRIM
8MAY 2189202
9GASKET, RC (BLACK)
9DOOR GASKET, MAGNETIC
10NAMEPLATE (SILVER)
11MAY W10234242
12MAY 2262054
13MAY 2266727
14FREEZER DOOR (INCLUDES 12 & 16) (WHITE)
14MAY W10611533
15MAY 2189009
15Hole Plug, Handle
16Shim, Door Stop (White)
16Shim, Door Stop (Black)
17GASKET, FC (BLACK)
17Door Gasket, Magnetic
18MAY 2266738
19MAY 2207942
