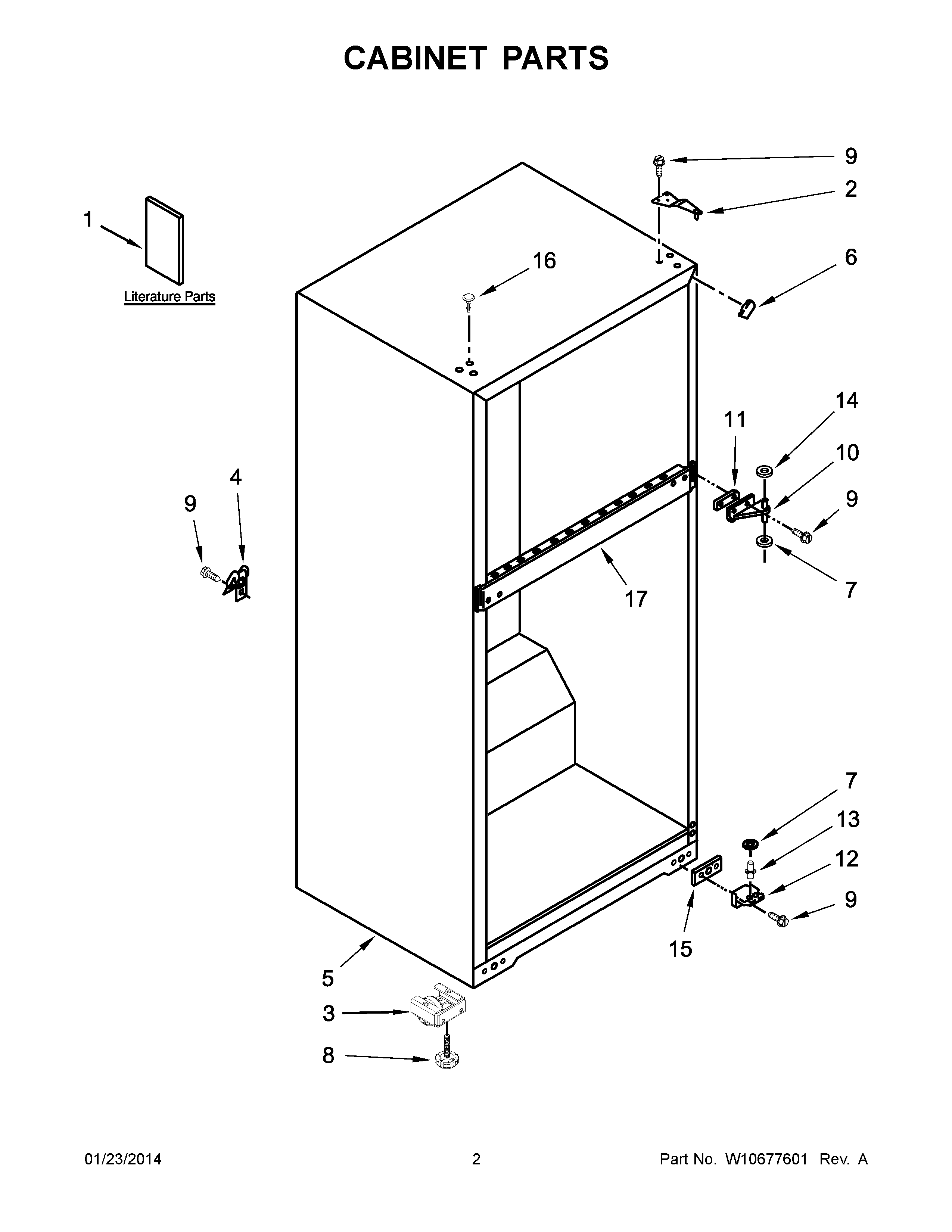

A8TXCWFXW00 02 – CABINET PARTS

Products

PositionProduct
1MAY W10294350
1MAY W10214129
1MAY W10366663
2MAY 2261963
3ROLLER, FRONT
4MAY 549193
6Corner Filler
7Washer (1/16)
8LEVELER SCREW
9MAY 489497
10MAY 2166086
11SHIM, HINGE CENTER (WHITE)
12Hinge Butt, Btm
13Hinge-Pin, Btm
14WASHER, PLASTIC
15MAY 2201567
16MAY W10520304
17LINER (NOT A SERVICEABLE PART)
