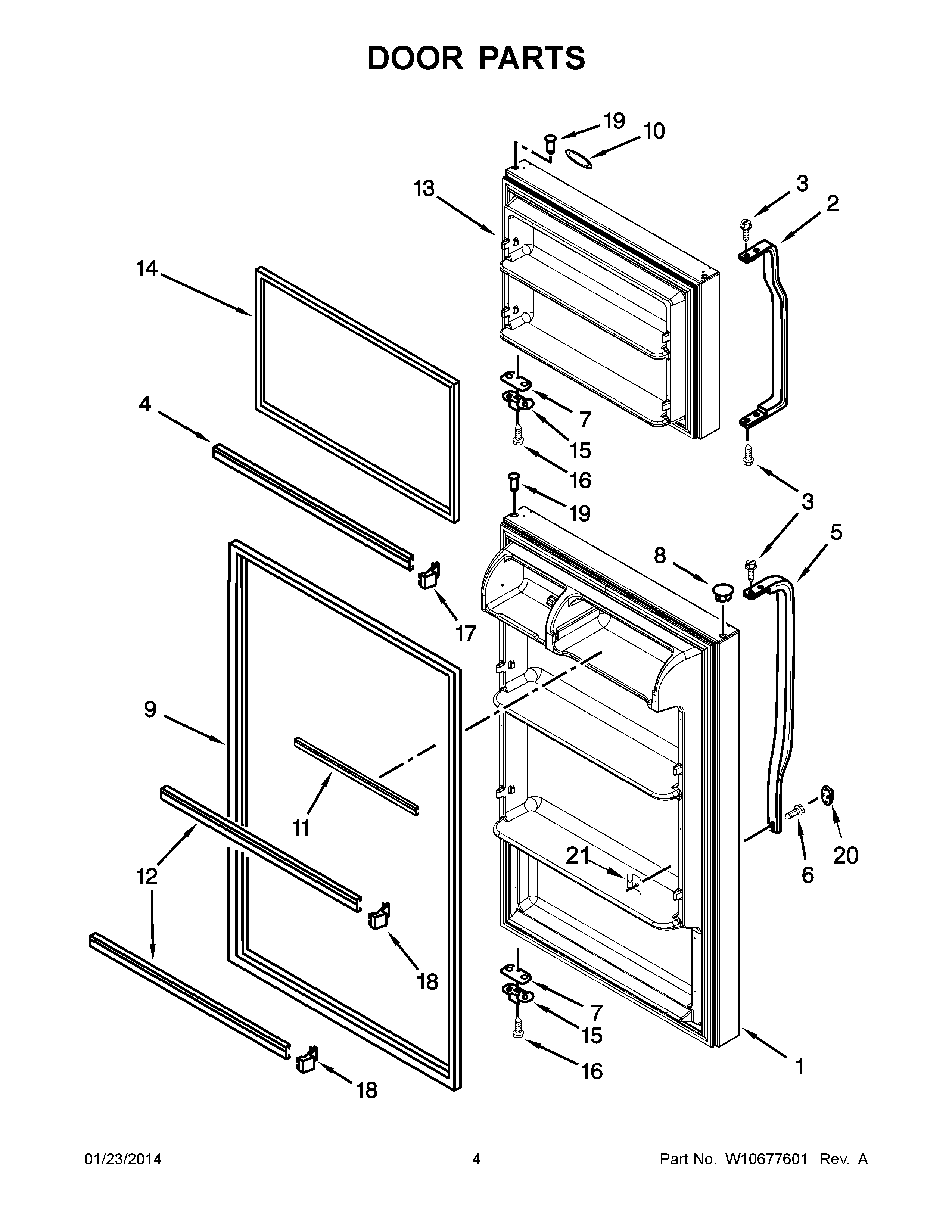

A8TXCWFXW00 03 – DOOR PARTS

Products

Position	Product
1	MAY W10287751
2	Handle, Freezer (White)
3	MAY 489357
4	MAY 2266727
5	Handle, Refrigerator (White)
6	MAY 8281206
7	Shim, Door Stop (White)
8	MAY 2212648
9	DOOR GASKET, MAGNETIC
10	NAMEPLATE (SILVER)
11	MAY W10234242
12	MAY 2266738
13	FREEZER DOOR (INCLUDES ILLUS. 14, & 18) (WHITE)
14	Door Gasket, Magnetic
15	MAY 2189202
16	MAY 8533904
17	END CAP, TRIM
18	PLUG-TRIM
19	MAY 2262054
20	Screw Cover (White)
21	SCREW ANCHOR
