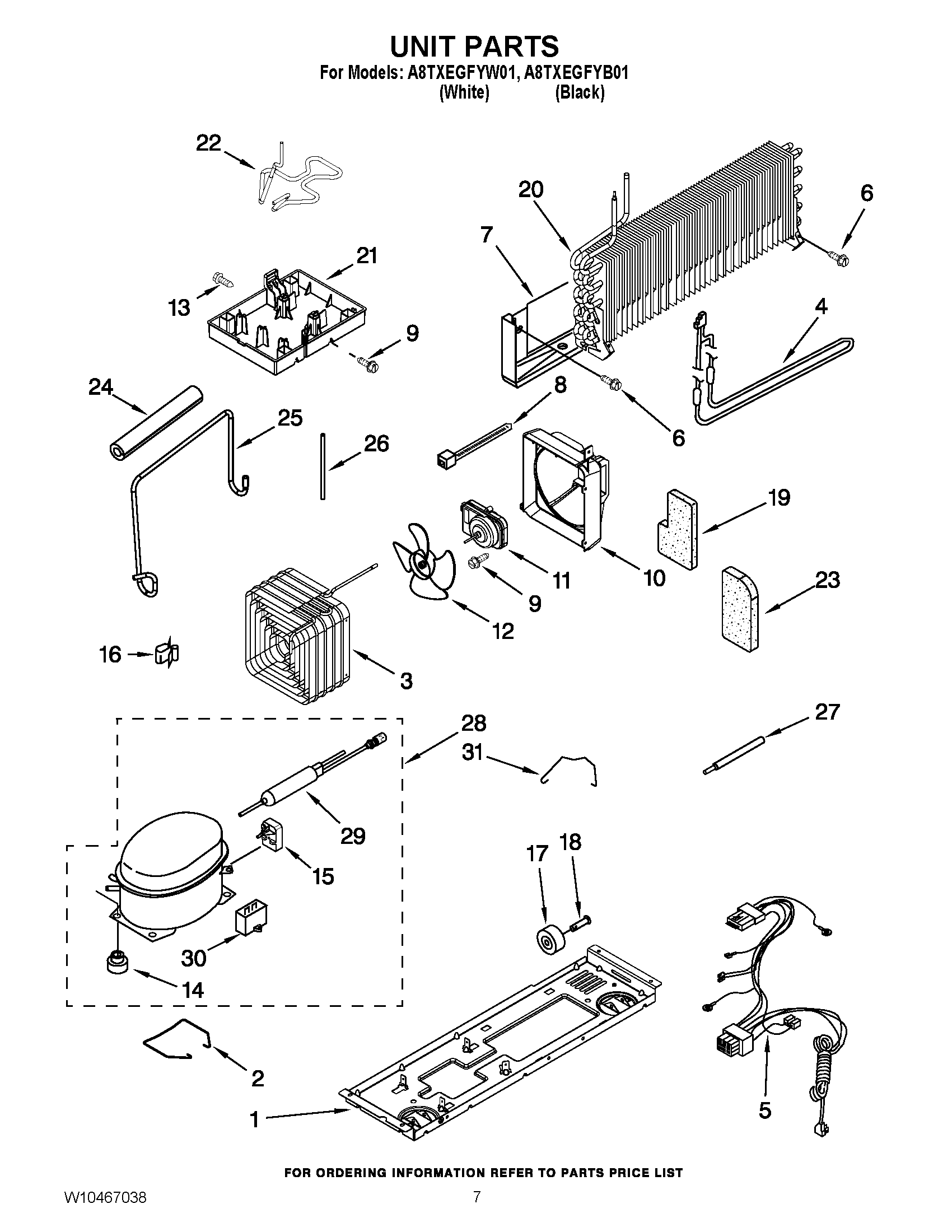

A8TXEGFYB01 04 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY W10222450
2	MAY 2264835
3	MAY 2264597
4	MAY 2176942
5	Wire Assy. Unit
6	MAY 489442
7	MAY 2319224
8	MAY 2263990
9	MAY 8533859
10	AIR BAFFLE
11	MOTOR, CONDENSOR
12	MAY 2264129
13	MAY 2264841
14	Grommet (Production)
15	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	Evaporating Tray
22	TUBE, DISCHARGE (INCL. PRE-COOLER)
23	MAY 2262192
24	MAY 2264838
25	MAY W10209727
26	MAY 2264278
27	PROCESS TUBE
28	COMPRESSOR (INCLUDES ITEMS 15, 29 & 30) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
29	Drier
30	Capacitator (Production)
31	BALE STRAP
